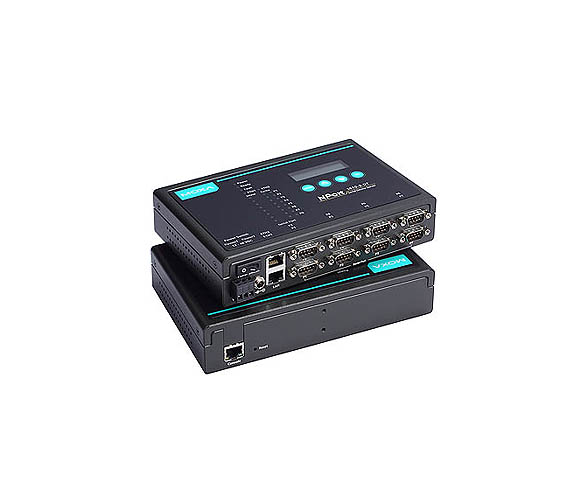

NPort 5650I-8-DT w/o adaptor - 8 port desktop mode device server, 3 in 1, RJ-45 8pin, 12-48VDC, with isolation, w/o adaptor
by MOXA

The NPort 5650I-8-DT w/o adaptor device servers can conveniently and transparently connect 8 serial devices to an Ethernet network, allowing you to network your existing serial devices with only basic configuration. You can both centralize management of your serial devices and distribute management hosts over the network. Since the NPort 5600-8-DT device servers have a smaller form factor compared to our 19-inch models, they are a great choice for applications that need additional serial ports, but for which mounting rails are not available.

• Ethernet Interface
Number of Ports	2 (1 IP)
Speed	10/100 Mbps, auto MDI/MDIX
Connector	8-pin RJ45
Magnetic Isolation Protection	1.5 KV built-in
• Serial Interface
Number of Ports	8
Serial Standards	NPort 5610-8-DT: RS-232  NPort 5650-8-DT: RS-232/422/485
Connector	NPort 5610-8-DT/5650-8-DT/5650I-8-DT: DB9 male  NPort 5610-8-DT-J/5650-8-DT-J: RJ45 (8 pins)
Serial Line Protection	15 KV ESD protection for all signals  2 KV isolation protection (NPort 5650I-8-DT only)
RS-485 Data Direction Control	ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485	1 KΩ, 150 KΩ
Terminator for RS-485	120 Ω
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	DSR/DTR and RTS/CTS (RS-232 only), XON/XOFF
Baudrate	50 bps to 921.6 Kbps
• Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
• Software
Network Protocols	ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP, Rtelnet, ARP, RFC2217
Configuration Options	Web Console, Telnet Console, Serial Console, Windows Utility
Windows RealCOM Drivers	Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8 x86/x64, 2012 x64, Embedded CE 5.0/6.0, XP Embedded
Fixed TTY Drivers	SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i
Linux Real TTY Drivers	Linux kernel 2.4.x, 2.6.x, 3.x
• Mini Screen with Push Buttons
LCD Panel	Liquid Crystal Display on the case
Push Buttons	Four push buttons for convenient on-site configuration
• Physical Characteristics
Housing	Metal, IP30 protection
Weight	NPort 5610-8-DT: 1760 g  NPort 5610-8-DT-J: 1710 g  NPort 5650-8-DT: 1770 g  NPort 5650-8-DT-J: 1710 g  NPort 5650I-8-DT: 1850 g
Dimensions	Without ears: 197 x 44 x 125 mm (7.76 x 1.73 x 4.92 in)  With ears: 229 x 46 x 125 mm (9.01 x 1.81 x 4.92 in)  With DIN-Rail kit on bottom panel: 197 x 53 x 125 mm (7.76 x 2.09 x 4.92 in)
• Environmental Limits
Operating Temperature	0 to 55°C (32 to 131°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
• Power Requirements
Input Voltage	12 to 48 VDC
Power Consumption	NPort 5610-8-DT:  611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V  NPort 5610-8-DT-J:  611 mA @ 12 V, 300 mA @ 24 V, 140 mA @ 48 V NPort 5650-8-DT:  615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V NPort 5650I-8-DT:  1066 mA @ 12 V, 510 mA @ 24 V, 200 mA @ 48 V NPort 5650-8-DT-J:  615 mA @ 12 V, 300 mA @ 24 V, 156 mA @ 48 V
• Standards and Certifications
Safety	UL 60950-1, EN 60950-1
EMC	CE, FCC
EMI	EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS	EN 55024
• Reliability
Alert Tools	Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger	Built-in WDT (watchdog timer)
MTBF (mean time between failures)	163,356 hrs
