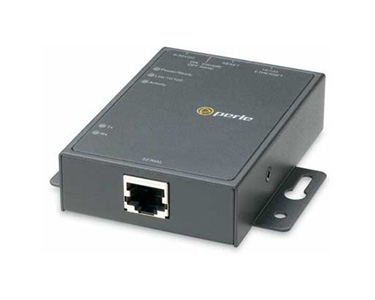

04031824 IOLAN SDS1 GR Secure Device Server: 1 x RJ45 10 pin connector with software selectable RS232/422/485 interface, 10/100/
by PERLE

For secure serial to Ethernet IOLAN SDS1 GR Secure Device Server, 04031824, connectivity applications, the IOLAN SDS Device Server is the most advanced compact product available on the market today. Delivering high performance in a compact size, an IOLAN SDS offers extensive security, flexibility and next generation IPv6 technology making it ideal for applications that require remote device/console management, data capture or monitoring. IOLAN Serial Device Servers are also available with an integrated V.92 modem, support for Power over Ethernet (PoE), Class 1 Division 2 or Extended Temperature ranges.

Why IOLAN SDS Device Servers are the preferred choice:

• Powerful processors for the best throughput and performance on the market
• TrueSerial® packet technology delivers the most authentic serial connections across Ethernet for serial protocol integrity
• Indicators for network and serial interfaces for easy troubleshooting
• Plug & Play installation utility eliminates configuration hassles for all IOLAN's on your IP network
• TruePort – Perle’s com/tty redirector for serial based applications operates on Windows, Vista, Linux, Solaris, SCO and Unix
• FIPS 140-2 – Cryptographic modules meet US Government NIST compliancy
• Power over serial cable eliminates costs of a separate power installation
• Next Generation IP support ( IPv6 ) for investment protection and network compatibility
• Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
• Java-free browser access to remote serial console ports via Telnet and SSH
• Ping watchdog probes enable customers to power cycle equipment with attached Perle RPS power switches in the event of an unresponsive networking gear

Secure Serial to Ethernet Connectivity

The IOLAN SDS Device Server enables administrators to securely access remote serial console ports on equipment such as PBX, servers, routers, network storage equipment and security appliances through an IP network. Sensitive data such as credit card holder information is protected through standard encryption tools such as Secure Shell (SSH) and Secure Sockets Layer (SSL). Access by authorized users is assured via authentication schemes such as RADIUS, TACACS+, LDAP, Kerberos, NIS and RSA Security's SecurID tokens.

By using encryption technologies, an IOLAN can protect sensitive and confidential data from a serial device such as a credit card reader before being sent across a corporate Intranet or public Internet. For compatibility with peer encryption devices, all of the major encryption ciphers such as AES, 3DES, RC4, RC2 and CAST128 are fully supported.

Recognized as the most secure method for communicating to remote private networks over the Internet, the IPSec standard provides robust authentication and encryption of IP packets at the network layer of the OSI model. As a standard it is ideal for multi-vendor interoperation within a network providing flexibility and the ability to match the right solution for a particular application.

IOLAN Plug-ins

By choosig a Perle IOLAN Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected. In the unlikely event that the Perle IOLAN Device Server does not enable this out of the box, Perle will make it work.

Perle IOLAN Device Servers utilize customer installable "Device Plug-ins" to successfully network devices where other solutions have failed. Request a free engineering consultation now.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN Serial to Ethernet Device Server range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Flexible and Reliable Serial to Ethernet Connections

An IOLAN SDS Device Server is ideal for connecting serial based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to serial based applications enabling communication with remote devices connected to Perle IOLAN's either in encrypted or clear text modes. You can also tunnel serial data between devices across an IP network.

Perle's Device Management software provides better centralized control of multiple units resulting in maximum uptime for your remote equipment.

All IOLAN SDS models have added protection against electrostatic discharges and power surges with robust 15Kv ESD protection circuitry enabling organizations to utilize this solution in the field with confidence.

Hardware Specifications - IOLAN SDS - 1, 2 and 4 port Compact Serial Device Servers

Serial Connector Pinout
IOLAN DB9M Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
1		DCD	-	-	-
2		RxD	RxD+	-	RxD+
3		TxD	TxD+	DATA+	TxD+
4		DTR	-	-	-
5		GND	GND	GND	GND
6		DSR	RxD-	-	RxD-
7		RTS	-	-	-
8		CTS	-	-	-
9		-	TxD-	DATA-	TxD-
IOLAN RJ45 Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
1		Power In	Power In	Power In	Power In
2		DCD	-	-	-
3		RTS	TxD+	DATA+	TxD+
4		DSR	-	-	-
5		TxD	TxD-	DATA-	TxD-
6		RxD	RxD+	-	RxD+
7		GND	GND	GND	GND
8		CTS	RxD-	-	RxD-
9		DTR	-	-	-
10		Power Out	Power Out	Power Out	Power Out
IOLAN DB25M Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
1		Sheild	Sheild	Sheild	Sheild
2		TxD	-	-	-
3		RxD	-	-	-
4		RTS	-	-	-
5		CTS	-	-	-
6		DSR	-	-	-
7		GND	GND	GND	GND
8		DCD	-	-	-
9		Power Out	Power Out	Power Out	Power Out
12		Power In	Power In	Power In	Power In
13		-	-	-	CTS-
14		-	TxD+	DATA+	TxD+
15		-	TxD-	DATA-	TxD-
18		-	-	-	RTS+
19		-	-	-	RTS-
20		DTR	-	-	-
21		-	RxD+	-	RxD+
22		-	RxD-	-	RxD-
25		-	-	-	CTS+
IOLAN DB25F Socket	Direction	RS232	RS485 Full Duplex	RS485 Half Duplex	RS422
1		Sheild	Sheild	Sheild	Sheild
2		RxD	-	-	-
3		TxD	-	-	-
4		CTS	-	-	-
5		RTS	-	-	-
6		DTR	-	-	-
7		GND	GND	GND	GND
8		DCD	-	-	-
9		Power Out	Power Out	Power Out	Power Out
12		Power In	Power In	Power In	Power In
13		-	-	-	RTS-
14		-	RxD+	-	RxD+
15		-	RxD-	-	RxD-
18		-	-	-	CTS+
19		-	-	-	CTS-
20		DSR	-	-	-
21		-	TxD+	DATA+	TxD+
22		-	TxD-	DATA-	TxD-
25		-	-	-	RTS+
Optional Perle adapters for use with straight thru CAT5 cabling
