IDS-5011F
- Operating Modes: Virtual Com, Serial Tunnel, TCP Server,TCP Client, UDP
- Redundant multiple host devices : 5 host devices : Virtual COM, TCP Server, TCP
Client mode; 4 IP ranges : UDP
- NAT Pass-Through : the user can manage IDS-5011F through NAT router
- Security: SSL data encryption; secured management by HTTPS and SSH: IP Access:
IP White List
- Internet Communication: PPPoE
- Update DNS Hostname: DDNS
- Event Warning by Syslog, Email, SNMP trap, and Beeper
- Configurable by Web-based and Windows utility (DS-Tool)
- Various Windows O.S. supported: Windows NT/2000/ XP/ 2003/VISTA (32bit/64bit)
/Windows 7 (32bit/64bit)
|
|
|

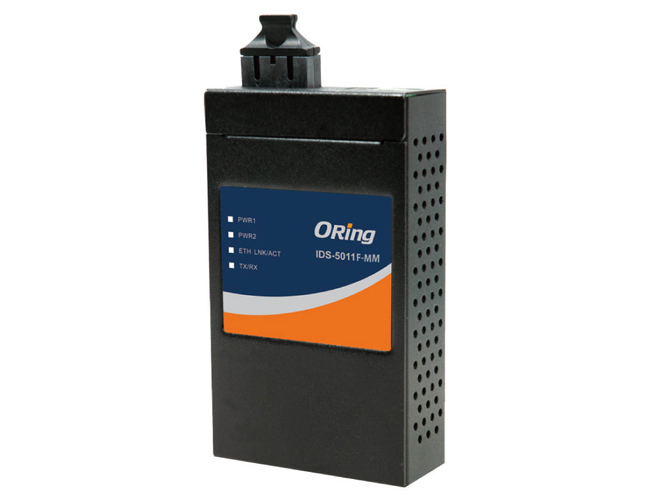

IDS-5011F is an innovative secure 1-port RS-232/422/485 to 1-port optic fiber
Ethernet port secure serial to Ethernet device server featuring the standard
features of device server, such like TCP/IP interface and versatile operation
modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP. In addition, the
Windows utility, DS-Tool, could configure multiple devices and set up the
mappings of Virtual Com. The features of NAT Router Pass-Through, DDNS, and
PPPoE make it more convenient for administrators to configure ORing’s device
servers through NAT router from different IP domains or Internet via modem
remotely. On the other hand, IDS-5011F can simultaneously transfer data up to 5
redundant host PCs to aovid Ethernet connection breakdown or any host PC fails.
Further, IDS-5011F features HTTPS, SSH, and SSL encryption to assure the
security of critical data transmission. IDS-5011F provides dual redundant power
inputs, 12~48 VDC, on DC power jack and terminal block to guarantee a non-stop
operation. With wide operating temperature, -40~70°C, and rugged IP-30 housing
design, IDS-5011F could operate in the harsh industrial environment. Therefore
IDS-5011F is the best solution to the high demand of secure serial to Ethernet
critical data communication.
| Physical Ports |
|
| Fiber Ports Number |
1 |
| Fiber Ports Standard |
100Base -FX |
| Fiber Mode |
Single-mode |
| Fiber Diameter (μm) |
9/125 μm |
| Fiber Optical Connector |
SC |
| Typical Distance (km) |
30 km |
| Wavelength (nm) |
1310 km |
| Max. Output Optical Power (dBm) |
-8 dBm |
| Min. Output Optical Power (dBm) |
-15 km |
| Max. Input Optical Power (Saturation) |
0 dBm |
| Min. Input Optical Power (Sensitivity) |
-34 dBm |
| Link Budget (dB) |
19 dB |
| Connector |
DB9(male) x 1 |
| Operation Mode |
RS-232 / RS-422 / 4(2)-Wire RS-485. Which can be configured by
DS-Tool / web interface |
| Serial Baud Rate |
110 bps to 460.8 Kbps |
| Data Bits |
5, 6, 7, 8 |
| Parity |
odd, even, none, mark, space |
| Stop Bits |
1, 1.5, 2 |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| RS-422 |
Tx+,Tx-, Rx+, Rx-,GND |
| RS-485 (4-wire) |
Tx+,Tx-, Rx+, Rx-,GND |
| RS-485 (2-wire) |
Data+, Data-,GND |
| Flow Control |
XON/XOFF, RTS/CTS, DTR/DSR |
| Network Features |
|
| Network Protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c,
HTTPS, SMTP, SSL, PPPoE, DDNS |
| LED Indicators |
|
| Power Indicator |
PWR 1(2) / Ready :
Red On : Power is on and booting up
Red Blinking : Indicates an IP conflict, or DHCP or BOOTP server did not
respond properly
Green On : Power is on and functioning Normally
Green Blinking : Located by Administrator |
| 100Base-FX with SC Connector |
Green for port Link/Act at 100Mbps |
| Serial TX / RX LEDs |
Red : Serial port is receiving data
Green : Serial port is transmitting data |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 12~48VDC on 3-pin terminal block and
power jack |
| Power Consumption (Typ.) |
4 watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present on terminal block |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
72(W) x 29.4(D) x 123.4(H) mm (2.83x1.16x4.86 inch.) |
| Weight (g) |
325 g |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-40 to 70°C (-40 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensing |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5
(Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Safety |
EN60950-1 |
| MTBF (Hours) (MIL-HDBK-217F2, GB, GC, 25°C ) |
562,542 |
| Warranty |
5 years |
|
|
|
|
