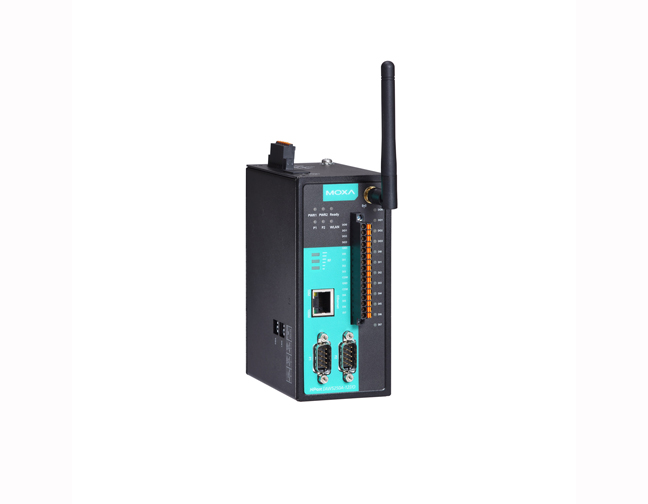

NPort IAW5150A-12I/O-US of The NPort IA5000A-I/O serial device servers, which have built-in digital I/Os, provide maximum flexibility when you need to integrate serial equipment in the field with an Ethernet network or cloud platform. The cloud-ready device server can communicate with IIoT applications, using generic MQTT or third-party cloud services, such as Azure and Alibaba Cloud. The combination of digital I/Os makes the device servers well-suited for a variety of industrial data acquisition applications. The DI/Os on the device can be controlled over TCP/IP using the Modbus TCP protocol and can be configured and secured from a web browser. The device can also be installed as a COM Port (patented Real COM) on a Windows/Linux PC to make it compatible with legacy applications.
All models are ruggedly constructed, DIN-rail mountable, and designed with redundant power inputs to ensure uninterrupted operation for industrial applications.
Wireless Client
The device servers are equipped with one Ethernet port that allows data to be transferred seamlessly between the serial line, LAN, and WAN, allowing the LAN and WLAN interfaces to be bridged together using a single IP address.
Supports MTConnect Protocol for Monitoring Digital Inputs
MTConnect is designed specifically for shop-floor applications that aim to convert shop-floor data into a standard format that can be understood by any MTConnect-compliant software applications. Once the data has been defined by an MTConnect-compliant interface (name, type, description, etc.), it eliminates the need to redefine the data within each application. For those legacy machine tools that do not support MTConnect, the common practice is to get machine-related data through sensor connections and I/Os. Moxa NPort IAW5000A-I/O supports MTConnect-enabled capability for all digital inputs on the device and provides a configurable interface for users to define what data and appropriate MTConnect tags need to be tied to the digital inputs.
Secure Remote Management and Configuration with SSH/HTTPS
Unauthorized access is one of the biggest headaches for system managers. In addition to IP filtering and password protection, the NPort IAW5000A-I/O Series also supports SSH and HTTPS to provide protection from hackers. To transmit control messages securely, open the web console using a web browser that supports HTTPS (Internet Explorer, for example). You may also open the serial or Telnet console, such as PuTTY, using a terminal emulator that supports SSH.
Select Any Baudrate Between 50 bps and 921.6 kbps
Most device servers only support a fixed number of serial baudrates. However, some applications require special baudrates, such as 250 kbps or 500 kbps. With the NPort IAW5000A-I/O Series, you can use any baudrate between 50 and 921.6 kbps. If your device’s baudrate is not a standard baudrate, select “other” from the drop-down list and then enter the baudrate.
Digital Input Channels
12I/O models: 8
Digital Output Channels
12I/O models: 4
Isolation
3k VDC or 2k Vrms
Alarm Contact Channels
Relay output with current carrying capacity of 2 A @ 30 VDC
Sensor Type
Dry contact
Wet Contact (NPN or PNP)
Dry Contact
On: short to GND
Off: open
Wet Contact (DI to COM)
On: 10 to 30 VDC
Off: 0 to 3 VDC
I/O Mode
DI or event counter
Counter Frequency
20 Hz
Digital Filtering Time Interval
Software configurable
I/O Mode
DO or pulse output
I/O Type
Sink
Over-Current Protection
2.6 A per channel @ 25°C
Over-Temperature Shutdown
175°C (typical), 150°C (min.)
Over-Voltage Protection
45 VDC
10/100BaseT(X) Ports (RJ45 connector)
1
Auto MDI/MDI-X connection
Magnetic Isolation Protection
1.5 kV (built-in)
Industrial Protocols
MQTT, MTConnect
Configuration Options
Web Console (HTTP/HTTPS), Windows Utility, Telnet Console, Serial Console
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel version: 2.4.x, 2.6.x, 3.x, 4.x
Fixed TTY Drivers
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
