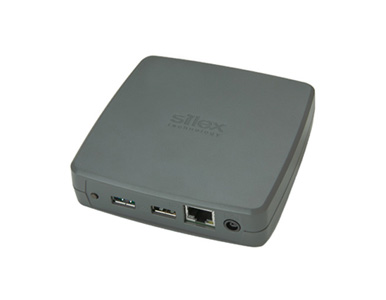

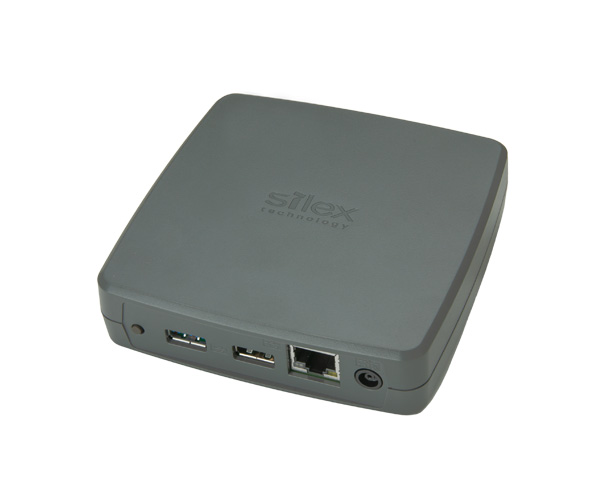

Silex DS-700AC-US - DS-700AC(US) 802.11a/b/g/n/ac wave2 Dual-Band Wireless & Gigabit Ethernet USB3 Device Server Including 802.1
by Silex
|
|
|
|
The Silex DS-700AC is designed to connect and share USB devices over a wireless network easily. Printers, scanners, disk drives, card readers, or virtually any other USB device can now be enabled with wireless network connectivity. It allows flexibility to place the USB device anywhere on the network instead of being attached directly to the computer, and multiple users can access the USB device.
|
|
|
DS-700AC-US: USB devices such as scanners, MFP (Multi-Functional Printer), hard disks, and cameras are used at offices. DS-700AC allows users to free from constrain of cables and place devices more freely by converting USB cables to a wireless network. More than one users share a single USB device easily by using DS-700AC, so that they can optimize the number of USB devices at offices and expect to reduce installation costs.
| Model Number |
DS-700AC |
| Wired LAN |
RJ-45: x 1
10Base-T/100BASE-TX/1000BASE-T (Auto detection) |
| Wireless LAN |
Dual-band 802.11a/b/g/n/ac wave2 2T x 2R MU-MIMO |
| Wi-Fi Security |
Authentication: WPA3-Enterprise, WPA2-Enterprise, WPA/WPA2-Enterprise, WPA3-Personal, WPA2-Personal, WPA/WPA2-Personal, Open
Encryption: WEP, AES, Auto |
Device Interface |
USB Std-A x 2 (USB 3.0 x 1, USB 2.0 x 1) |
Switch |
Push switch x 1 |
LED |
RJ-45: x 2 |
Security Features |
USB device connection password protection
IP address filter
Port filter |
Storage Temperature
Humidity |
-10 ~ + 50°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 40°C
20% ~ 80% RH (non-condensing) |
| Power |
DC Jack 12V |
| Maximum Power Consumption |
5.4W (DC12V, 0.45A) excluding USB Vbus power |
| Regulatory Compliance |
FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS |
| Supported Software |
SX Virtual Link
Device Server Setup
AMC Manager® |
| Supported OS |
Windows 11
Windows 10 RS5 (32/64bit)
Windows 8/8.1 (32/64bit)
Windows 7 (32/64bit)
Windows Server 2025
Windows Server 2022
Windows Server 2019
Windows Server 2016
Windows Server 2012R2
Windows Server 2012
Windows Server 2008R2 |
| Dimensions |
110mm x 109mm x 27mm |
| Weight |
135g (body) |
| Warranty |
5 years |
| Note |
Limitation of USB 3.0 port:
support only USB device connection. Please use a USB 2.0 port to connect USB HUB.
The USB display adapter is not supported |
|
|
|
|
