IDS-1112
- High Speed Air Connectivity: WLAN interface support up to 54Mbps link speed
- Operating Modes: Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP
- Redundant multiple host devices:
- 5 host devices: Virtual COM, TCP Server, TCP Client mode; 4 IP ranges: UDP
- NAT-pass through: user can manage IDS-1112 through NAT router
- High Security Capability: SSL data encryption; secured management by HTTPS and
SSH: IP Access: IP White List; wireless: WEP/WPA/WPA2/802.1X/TKIP
- Internet Communication: PPPoE
- Update DNS Hostname: DDNS
- Event Warning by Syslog, Email, SNMP trap, and Beeper
- Configurable by Web-based and Windows utility (DS-Tool)
- Various Windows O.S. supported: Windows NT/2000/ XP/
2003/VISTA(32/64bit)/Windows 7(32/64bit)
|
|
|

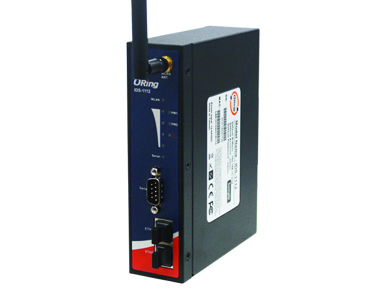

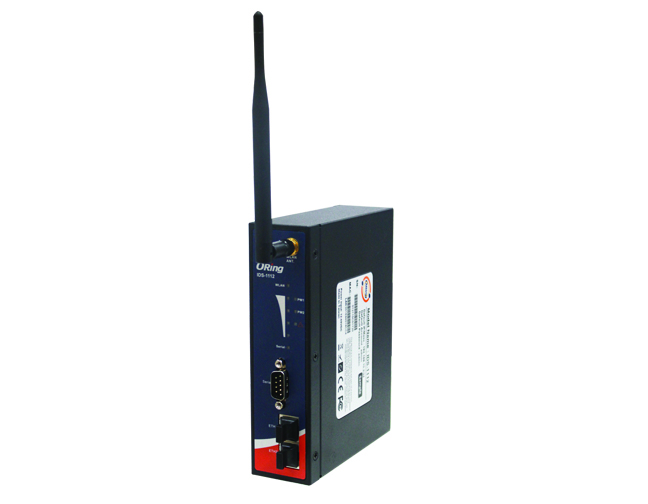

IDS-1112 is an innovative secure 1 port RS232 to 802.11b/g WLAN, up to
54Mbps, and 2 port LAN device server featuring the standard features of device
server, such like TCP/IP interface and versatile operation modes: Virtual Com,
Serial Tunnel, TCP Server, TCP Client, and UDP. In addition, the Windows
untility, DS-Tool, could configure multiple devices and set up the mappings of
Virtual Com. The features of NAT Router Pass Through, DDNS, and PPPoE make it
more convenient for administrators to configure ORing’s device servers through
NAT router from different IP domains or Internet via modem remotely. On the
other hand, IDS-1112 can simultaneously transfer data up to 5 redundant host PCs
to aovid Ethernet connection breakdown or any host PC fails. Further, IDS-1112
features HTTPS, SSH, SSL encryption, and 802.1X to assure the security of
critical data transmission.
IDS-1112 supports RS-232 and provides dual redundant power inputs, 12~48 VDC,
on DC power jack and terminal block to guarantee a non-stop operation. With wide
operating temperature, -10~65oC, and rugged IP-30 housing design, IDS-1112 could
operate in the harsh industrial environment. Therefore, IDS-1112 is the best
solution to the high demand of secure serial to WLAN critical data
communication.
| Physical Ports |
|
| 10/100 Base-T(X) Ports in RJ45 Auto MDI/MDIX |
2 |
| WLAN interface |
|
| WLAN Standard |
IEEE802.11b/g |
| Operating Mode |
Client mode |
| Antenna and Connector |
2dBi antenna on reversed SMA connector |
| Radio Frequency Type |
DSSS, OFDM |
| Modulation |
IEEE802.11b : CCK, DQPSK, DBPSK
IEEE802.11g : OFDM with BPSK, QPSK, 16QAM, 64QAM |
| Frequency |
America/FCC : 2.412~2.462 GHz (11 channels)
Europe CE/ETSI : 2.412~2.472 GHz (13 channels) |
| Transmission Rate |
IEEE802.11b : 1/ 2/ 5.5/ 11 Mbps
IEEE802.11g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps |
| Transmit Power |
IEEE802.11b/g : 18dBm |
| Receiver Sensitivity |
-81dBm @ 11Mbps, PER< 8%
-64dBm @ 54Mbps, PER< 10% |
| Encryption Security |
WEP : (64-bit ,128-bit key supported)
WPA / WPA2 :IEEE802.11i(WEP and AES encryption)
WPA-PSK (256-bit key pre-shared key supported)
TKIP encryption
802.1X Authentication supported |
| Serial Ports |
|
| Connector |
DB9(male) x 1 |
| Operation Mode |
RS-232 |
| Serial Baud Rate |
110 bps to 230.4 Kbps |
| Data Bits |
5, 6, 7, 8 |
| Parity |
odd, even, none, mark, space |
| Stop Bits |
1, 1.5, 2 |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND |
| Flow Control |
XON/XOFF, RTS/CTS, DTR/DSR |
| Network Features |
|
| Network Protocols |
ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP,
SSL, PPPoE, DDNS |
| LED
Indicators |
|
| Power Indicator |
PWR 1(2) / Ready :
Red On : Power is on and booting up.
Green On : Power is on and functioning Normally.
Green Blinking : Located by Administrator. |
| 10/100Base-T(X) RJ45 Port Indicator |
Green for port Link/Act at 100Mbps. Amber for port Link/Act at
10Mbps. |
| WLAN Indicator |
Green for WLAN Link /ACT WLAN Strength 1<25% , 2<50%, 3<75%,
4<100% |
| Serial TX / RX LEDs |
Red : Serial port is receiving data
Green : Serial port is transmitting data |
| Power |
|
| Redundant Input Power |
Dual DC inputs. 12~48VDC on 3-pin terminal block and power jack |
| Power Consumption (Typ.) |
6.5 watts |
| Overload Current Protection |
Present |
| Reverse Polarity Protection |
Present on terminal block |
| Environmental |
|
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Operating Temperature |
-10 to 65°C (14 to 149°F) |
| Operating Humidity |
5% to 95% Non-condensin |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5
(Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
| Warranty |
3 years |
|
|
|
|
