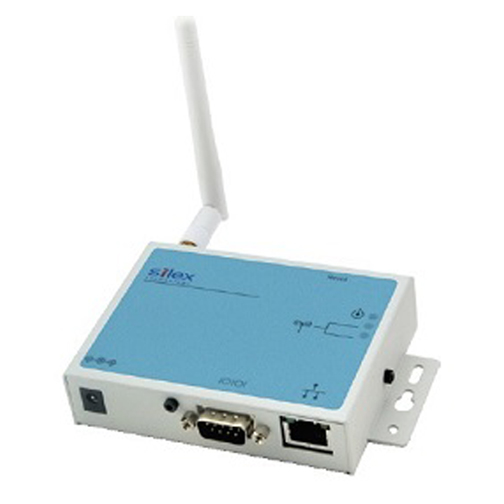

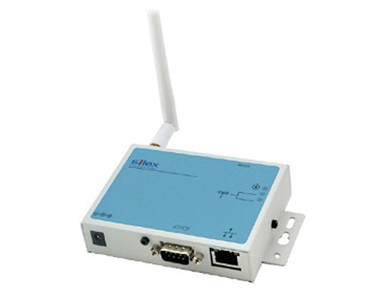

Silex SD-330AC-1402-US - SD-330AC-1402 serial device server / Ethernet bridge, 10/100 Ethernet, 802.11a/b/g/n/ac, RS-232 serial,
by Silex
|
|
|
|
The Silex SD-330AC-1402 features a FIPS 140-2 wireless/wired LAN Serial Device Server and an Ethernet to Wi-Fi Bridge. Devices equipped with the RS-232C serial interfaces can join an Ethernet LAN or wireless LAN. Devices with an Ethernet port are also transformed into wireless network devices. Medical devices, printers, scanners or virtually any other device with a serial port or an Ethernet port can now be enabled with secure and robust LAN network capability. The SD-330AC-1402 can be simply added to US government facilities to enhance device networking connectivity.
|
|
|
The Silex SD-330AC-1402-US is a FIPS 140-2 certified wireless / wired LAN Serial Device Server as well as an Ethernet to Wi-Fi Bridge which securely connects devices equipped with the RS-232C serial interfaces and/or the Ethernet into any network eliminating the need for wired connection between the devices and the computers. Medical devices, printers, scanners or virtually any other device with a serial port or an Ethernet port can now be enabled with secure and robust LAN network capability.
| Model Number |
SD-330AC-1402 |
| Wired LAN |
10BASE-T/100BASE-TX |
| Wireless Standard |
IEEE 802.11a/b/g/n/ac
Dual-band |
| Wi-Fi Security |
FIPS mode
WPA2-PSK (AES)
Non-FIPS mode
Open (128bit) / WPA-PSK (AUTO) / WPA2-PSK (AES)
|
| Device Interface |
RS-232C (D-sub9)
Ethernet (RJ-45) |
Storage Temperature
Humidity |
-20 ~ + 70°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 50°C
20% ~ 80% RH (non-condensing) |
| Power Supply |
2.5W (DC5V / 0.5A)
DC Jack (EIAJ Class2) or DB-9 Pin9 |
| Regulatory Compliance |
FCC Class B,
ICES-003 Class B, RoHS
FIPS 140-2 (Certificate #4241) |
|
|
|
|
