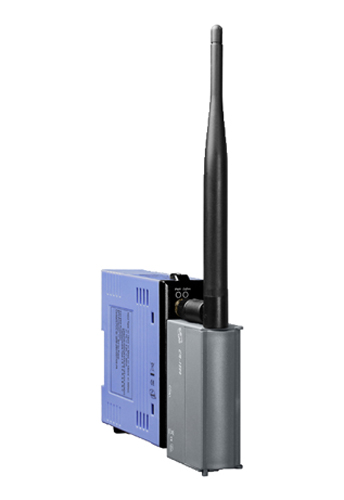

The ZT-2018 a wireless 16-bit, 8-channel differential analog input module with an extremely high quality protection mechanism where overvoltage protection is up to 240 Vrms. Input type includes current, voltage as well as thermocouple. and is much more suitable for harsh environments. Moreover, a newly-added feature that enables open thermocouple detection makes the ZT-2018 more attractive than ever. The ZT-2018 is also qualified for 4 kV ESD protection and 3000 VDC intra-module isolation. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G / ZigBee Specification
- Wireless Transmission Range up to 700 m
- GUI Configuration Software (Windows Version)
- 8 Different Analog Input Channels (TC, mV, V)
- Individual Channel Configuration
- Open Thermocouple Detection
- Overvoltage Protection up to 240 Vrms
- DIN-Rail Mounting
- Can host with ZT-2570 or ZT-2550
| Communication Interface |
| Wireless Standards |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm (FCC Certifi cated) ( Max 19 dBm) |
| 2.4 GHz Antenna |
5 dBi Omni directional |
| Transmission Range (LoS) |
700 m (Typical) |
| Certification |
CE/FCC, FCC ID |
| Max. Slaves in a ZigBee Network |
255 |
| ZB-100R/ZB-100T Support |
- |
| Protocols |
Supports DCON and Modbus RTU Protocols |
| Hot Swap |
Rotary and DIP switch |
| LED Indicators |
| Power |
1 LED, red |
| ZigBee Communication |
1 LED, green |
| Power |
| Power Consumption |
1.2 W Max. |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Relative Humidity |
10 ~ 90% RH, Non-condensing |
| Analog Input |
| Input Channels |
8 Differential |
| Input Types |
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, or 4 ~ 20 mA Thermocouple (J, K, T, E. R. S, B, N, C, L, M, L (DIN43710)) |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec. (Total) |
| Accuracy |
+/-0.1% of FSR |
| -3dB Bandwidth |
15.7 Hz |
| Zero Drift |
+/-10 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>400 MΩ |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Intra-module Isolation, Field-to-Logic |
3000 VDC |
| ESD Protection |
+/-4 kV contact for each channel |
|
