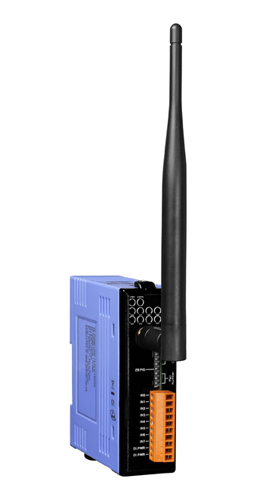

ICP DAS ZT-2052-IOP - 8 Channel Isolated DI, Pair connection
by ICP DAS
|
|
|
|
ZigBee Pair-connection to the 8-ch Isolated Digital Input Module (Host, ZigBee Coordinator) with embedded I/O channel binding. Has operating temperatures of -25°C ~ +75°C (-13°F ~ +167°F)
|
|
|
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G IEEE 802.15.4/ZigBee Specifications
- Wireless Transmission Range up to 700 m
- 8 Channels Pair-connection of the Digital Input
- Surge and ESD Protection
- DIN-Rail Mountable
The ZT-2052-IOP module acts as a ZigBee coordinator that provides 8-channel digital input pair-connection function with module ZT-2042 (4-ch PhotoMOS Relay Output and 4-ch Open Collector). An embedded I/O channel binding function means that there is no need to use an external controller.
The status of each ZT-2052-IOP channel triggers the corresponding remote digital output channels on the ZT-2042 module. The ZT-2052-IOP continually transmits status updates of the digital input channels to the remote ZT-2042 to ensure that the digital output channels are synchronized.
The ZT-2052-IOP also provides external DIP and Rotary switches for easy configuration, which can be used to synchronize the digital signals in any environment where wiring is difficult.
| Communication Interface |
| Wireless Standards |
ZigBee 2007 Pro |
| Transmission Power |
11dBm (FCC Certificated) |
| 2.4 GHz Antenna |
5 dBi Omni directional |
| Transmission Range (LoS) |
700 m (Typical) |
| Certification |
Yes - CE/FCC, FCC ID |
| Max. Slaves in ZigBee Network |
255 |
| Hot Swap |
Rotary and DIP switch |
| LED Indicators |
| Power / Debug |
1 Red LED, ZigBee Device Power Indicator |
|
| ZigBee Communications |
1 Green LED, ZigBee Communication Indicator |
| Digital Input and Output |
8 Green LED, Digital Input Channel Indicators |
| Isolation |
| Intra-module Isolated, Field-to-Logic |
3750 VDC |
| Power |
| Input Voltage Range |
+10 VDC ~ +30 VDC |
| Power Consumption |
1 W (Max.) |
| Mechanical |
| Flammability |
Fire Retardant materials (UL94-V0 Level) |
| Dimensions (W x L x H) |
33 mm x 88 mm x 110 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30 ~ +80°C (-22°F ~ +176°F) |
| Relativel Humidity |
10 ~ 90% RH, Non-condensing |
I/O Specifications
| Digital Input/Counter |
| Input Channels |
8 |
| Wet Contact |
On Voltage Level: +3.5 VDC ~ +30 VDC |
| Off Voltage Level: +1 VDC Max. |
| Counter |
Channels: 8 |
| Max. Count: 16-bit (65535) |
| Max. Input Frequency: 100 Hz |
| Min. Pulse Width: 5 ms |
| Intra-module Isolation, Field to Logic |
3750 Vrms |
| Impedence |
3 kΩ, 0.33 W |
| ESD Protection |
+/-4 kV contact for each channel |
|
|
|
|
