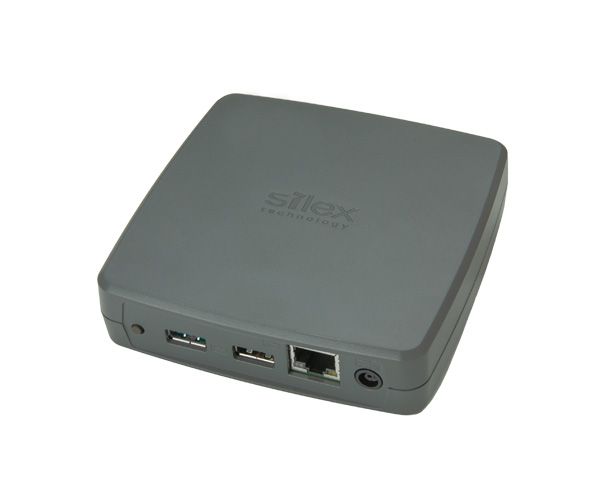

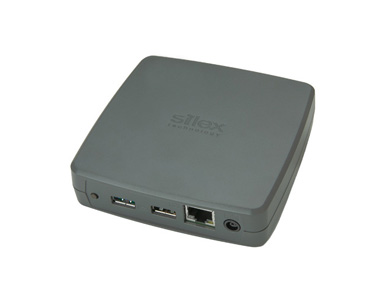

Silex DS-700-US

100
by Silex

The Silex DS-700 is designed to easily connect and share USB devices over a network. Printers, scanners, disk drives, card readers, or virtually any other USB device can now be enabled with network capability. It allows flexibility to place the USB device anywhere on the network instead of needing to be attached directly to the computer, and multiple users can access the USB device.

Description
Specification
Datasheet

DS-700-US: USB devices such as scanners, MFP (Multi-Functional Printer), hard disks, and cameras are used at offices. DS-700 allows users to free from constrain of USB cables and place devices more freely by converting USB cables to a network. More than one users share a single USB device easily by using DS700, so that they can optimize the number of USB devices at offices and expect to reduce installation costs.

Model Number	DS-700
Wired LAN	Ethernet: RJ-45: x 1 10Base-T/100BASE-TX/1000BASE-T (Auto detection)
Device Interface	USB Std-A x 2 (USB 3.0 x 1, USB 2.0 x 1)
Switch	Push switch x 1
LED	RJ-45: x 2
Security Features	USB device connection password protection IP address filter Port filter
Storage Temperature Humidity	-10 ~ + 50°C 20 ~ 90% RH
Operating Temperature Humidity	0 ~ + 40°C 20% ~ 80% RH (non-condensing)
Power	DC Jack 12V
Maximum Power Consumption	4.2W (DC12V, 0.35A) excluding USB Vbus power
Regulatory Compliance	FCC Class B, ICES Class B, CE Class B, VCCI Class B, RoHS
Supported Software	SX Virtual Link Device Server Setup AMC Manager®
Supported OS	Windows 11 Windows 10 RS5 (32/64bit) Windows 8/8.1 (32/64bit) Windows 7 (32/64bit) Windows Server 2025 Windows Server 2022 Windows Server 2019 Windows Server 2016 Windows Server 2012R2 Windows Server 2012 Windows Server 2008R2
Dimensions	110mm x 109mm x 27mm
Weight	130g (body)
Warranty	5 years
Note	Limitation of USB 3.0 port: support only USB device connection. Please use USB 2.0 port to connect USB HUB. USB display adapter is not supported
