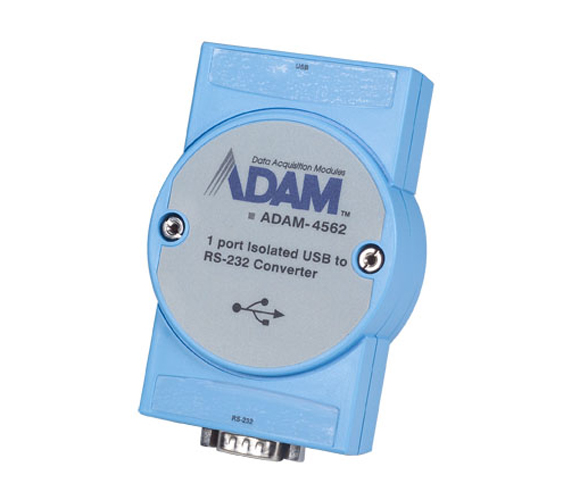

ADAM-4562 allows PC users to connect a serial device to a system that use a USB interface. To attach the ADAM-4562 to a PC, you don’t need to open the chassis or power down your PC. Instantly get one or two extra high-speed RS-232/422/485 ports. The power is derived from the USB port, so there are no power adapters to deal with. Thismakes the ADAM-4562 especially suitable for modems, printers, POS systems and industrial control devices.
Compliant with USB V1.1, ADAM-4562 features several powerful functions such as high-speed 115.2 kbps transmission, support for various operating systems, independentRS-232/422/485 ports and more. By simply plugging in a USB hub, ADAM-4562 eliminates the configuration issues associated with high-priced, older card solutions. Youonly have to install the drivers, no need to set cards slots, IRQ addresses, DMA channels, or device addresses. This reduces programming effort.
General
Network: USB-type A connector (type A to type B cable provided) Serial:
| ADAM-4561 |
1 x plug-in terminal
(#14 ~ 22 AWG)
(3-wire RS-232/422/485) |
ADAM-4562 |
1 x DB-9 serial connectors
(9-wire RS-232) |
ADAM-4561: 3,000 VDC
ADAM-4562: 2,500 VDC
ADAM-4561: 1.5 W @ 5 V
ADAM-4562: 1.1 W @ 5 V
ADAM-4561/4562: Windows 2000/XP/ Vista/7/8 (32&64-bit)
- USB Specification Compliance
ADAM-4561: USB 2.0
ADAM-4562: USB 2.0
Serial Communications
ADAM-4561: 600 bps to 115.2 kbps
ADAM-4562: 75 bps to 115.2 kbps
- Transmission Modes: Full/half duplex, bidirectional
