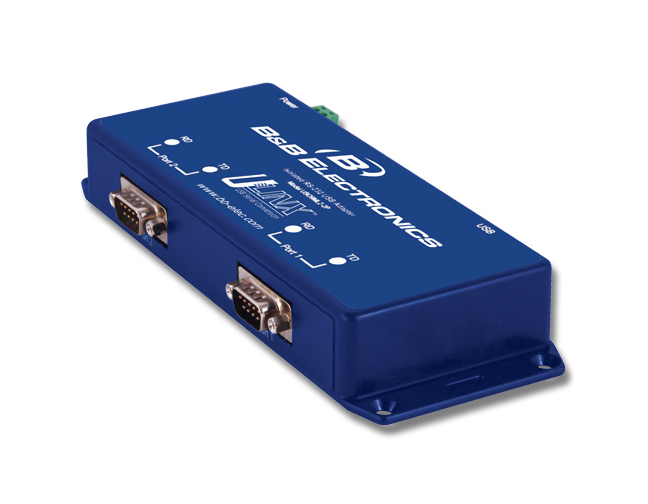

Advantech USO9ML2-2P - USB to isolated serial 2 port RS-232 w/ DB9M
by Advantech

Connects multiple RS-232 devices to your USB Port
2000 V RMS Port-to-Port Optical Isolation
15 KV ESD Surge Protection
USB Port Powered or External Power
Supports USB 2.0 (Backward Compatible)
RS-232 Data Rates up to 460.8 kbps
LED’s to indicate data flow on RS-232 ports
High retention USB interface ensures a reliable connection
Automatic Configuration on Windows 2000, XP, Vista, 7 (32/64 bit)

Mfg SKU # :

BB-USO9ML2-2P

Our Price :

$231.00

Description
Specification
Datasheet

Connect legacy RS-232 devices to a USB port and gain 2000 V RMS isolation from voltage spikes and ground loops. Universal Serial Bus (USB) has become the connectivity workhorse of today’s PCs, replacing the familiar serial ports. However, many commercial and industrial devices still use the RS-232 interface. To connect these devices to modern PCs and provide protection from electrical transients, you need a simple and reliable conversion solution. The USO9ML2-2P and USO9ML2-4P offer this solution. Simply plug the converter into an available USB port on your computer or USB hub and install the drivers supplied on CD ROM. The device will show up as additional COM ports in the Windows Device Manager which are fully compatible with your Windows applications. A one meter USB cable is included.

High retention USB connectors offer minium withdrawal strength of 15 Newtons
Add two or four COM ports to your USB PC
LEDs on transmit and receive lines
USB 1.0, 1.1, and 2.0 compatible (12 Mbps)
Automatic configuration on Windows 98, ME, 2000, XP, Vista and 7
No power supply required (powered from USB bus)
-P models can be bus powered or externally powered
Recommended external power supplies
12DC1AST - 12VDC@1000ma Strip & Tin Power Supply, Wall Transformer
MDR-20-24 - 24VDC, 1.0 A output power DIN rail mount power supply
Includes 1 meter USB cable
