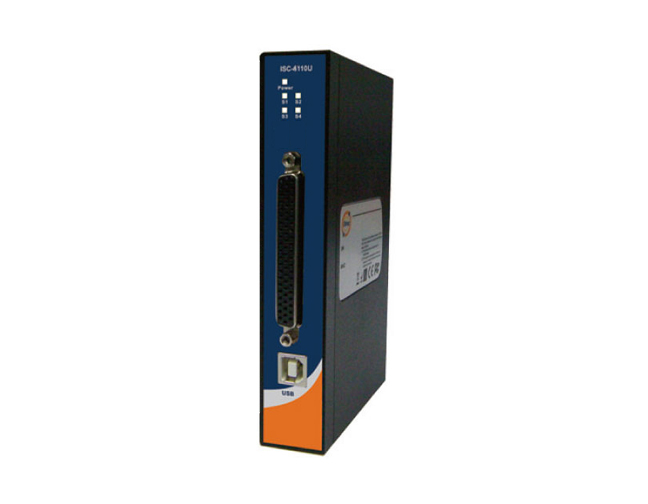

ISC-4110U   - Slim size 1 ports USB2.0 to 4 port RS-232 Serial Convertor by Oring Industrial Networking

ISC-4110U - Slim size 1 ports USB2.0 to 4 port RS-232 Serial Convertor
by Oring Industrial Networking

Write a review Write a review
  • Fully compliant with USB specification 1.1
  • Support Full-Duplex transmission for RS-232/RS-422
  • RS-232/RS-422 support RTS/CTS handshake signals
  • Transient suppression on RS-485 data lines
  • Auto detect and switching for USB to RS-232/422/485
  • Auto detect and switching baud rate up to 115.2Kbps
  • USB bus powered with ultra low power consumption
  • DIN-Rail and wall mounting enabled
Mfg SKU # : ISC-4110U
List Price : $361.00
Our Price : $307.00
Stock :Call for Availability
Quantity :
ISC-4110U and ISC-8110U are intelligent and compact-size media converters that provide conversion between one Universal Serial Bus (USB) port and 4 or 8 High-Speed RS-232 serial ports. The ISC-4110U and ISC-8110U feature easy connectivity for traditional serial devices. The RS-232 standard supports full-duplex communication and handshaking signals (such as RTS, CTS, DSR, DTR). Internal high-speed transient suppressors on each data line protect the modules from dangerous voltages levels or spikes. ISC-4110U/8110U can derive the power from USB port or redundant power inputs. Therefore, ISC-4110U and ISC-8110U are among the most reliable choices for USB to RS-232 media converter applications.
Physical Ports
USB 2.0 port 1
RS-232 Serial Port 4
Serail Connector DB9 connector (Male) : By DB62 to 4xDB9 cable
Baud Rate 300 to 921.6Kbps
RS-232 Signals TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
LED Indicators
Power Indicator Green : Power LED x 1
Data Transmission Indicator Green LED x 4
Power
Redundant Input Power USB bus power (self power) or Dual DC inputs by 12-48VDC on 2-pin terminal block and power jack
Power Consumption (Typ.) 1.6 Watts (320mA@5V USB Bus Power)
Protection
Serial Port Protection Build-in 15KV ESD protection
Driver Support
Operation System Windows 2000 (32bit), Windows 20003/XP/Vista/2008/7 (32/64bit), Windows Mobile 5/6, PocketPC 2003, WinCE 4.2~5.2/6.0, Linux x86 (32/64bit)
Physical Characteristics
Enclosure IP-30
Dimensions (W x D x H) 26.1(W) x 94.9(D) x 144.3(H) mm (1.03 x 3.74 x 5.68 inch)
Weight (g) 348 g
Environmental
Storage Temperature -40 to 85°C (-40 to 185°F)
Operating Temperature -40 to 70°C (-40 to 158°F)
Operating Humidity 5% to 95% Non-condensing
Regulatory Approvals
EMI FCC Part 15, CISPR (EN55022) class A,
EMS EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27
Free Fall IEC60068-2-32
Vibration IEC60068-2-6
Safety EN60950-1
