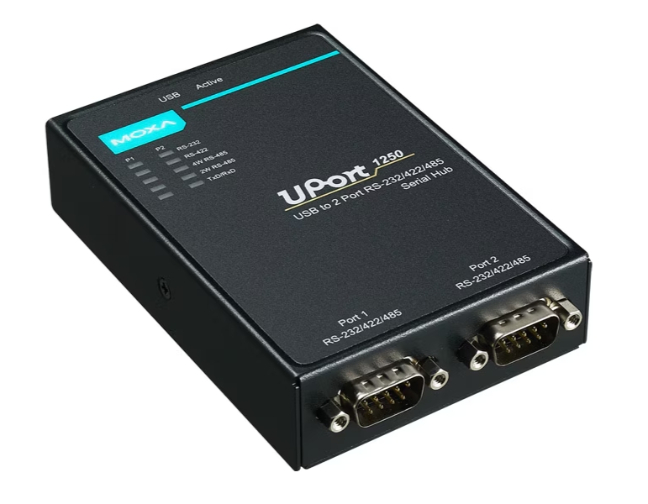

UPort 1250I - 2 Port USB-to-Serial Hub, RS-232/422/485, w/ Isolation by MOXA
|
|
|
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- 15N high retention type B connector
- Drivers provided for Windows, WinCE, and Linux
- LEDs for easy monitoring
- 15 kV ESD protection for all serial ports
- Locking power cord for the UPort 1250I
|
|
|
Overview
The UPort® 1250I USB-to-serial converters allow you to connect 2 RS-232/422/485 devices to your laptop or workstation through the USB (Universal Serial Bus) port. These plug & play USB solutions are perfect for mobile, instrumentation, and point-of sale applications.
Typical Application—Connecting Instruments in a Medical Lab
In medical labs, research scientists typically collect large quantities of data from many samples using a variety of different instruments. Most research devices have parameters that can be accessed via a serial port for convenient reconfiguration. Laptops are often used as convenient and space-efficient computing solutions in medical labs, but most modern laptops no longer offer serial ports and only come equipped with USB ports. This presents a connectivity issue unless the USB ports can be expanded into serial ports.
Moxa’s solution is the UPort® 1250I, which is an RS-232/422/485 USB-to-serial converter that can be used to connect 2 serial interface instruments to a computer’s USB port, and is particularly convenient for medical researchers since advanced technical expertise is not required. The UPort® 1250I has the following features:
- 2 serial ports for easy USB-to-serial expansion
- True USB 2.0 high-speed transmission
- 128-byte FIFO and on-chip hardware and software flow control to ensure stable data transmission
- Easy troubleshooting with LED indicators for each serial port
- Compatible with both laptops and desktop PCs
• USB Interface |
Compliance |
USB 1.1/2.0 compliant |
Connector |
USB type B |
Speed |
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) |
• Serial Interface |
Number of Ports |
2 |
Serial Standards |
RS-232/422/485 |
Connector |
DB9 male |
• Serial Line Protection |
ESD Protection |
15 kV embedded |
Electrical Isolation |
2 kV (UPort 1250I only) |
• Performance |
Baudrate |
50 bps to 921.6 kbps (including 500 kbps) |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
Flow Control |
RTS/CTS, XON/XOFF |
FIFO |
128 bytes |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
RS-422 |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
RS-485-4w |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
RS-485-2w |
Data+(B), Data-(A), GND |
RS-485 Data Direction |
ADDC® (Automatic Data Direction Control) |
• Operating Systems |
Windows Real COM Drivers |
Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
• Android Driver |
Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
Note |
Please refer to Moxa’s website for the latest driver support information. |
• Physical Characteristics |
Housing |
SECC sheet metal (1 mm) |
Weight |
Product only: 180 g (0.40 lb)
Packaged:
UPort 1250: 370 g (0.82 lb)
UPort 1250I: 680 g (1.5 lb) |
Dimensions |
77 x 26 x 111 mm (3.03 x 1.02 x 4.37 in) |
• Environmental Limits |
Operating Temperature |
0 to 55°C (32 to 131°F) |
Storage Temperature |
-20 to 75°C (-4 to 167°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
Up to 2000 m |
Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
• Standards and Certifications |
Safety |
UL 60950-1 |
EMC |
CE, FCC |
EMI |
EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A |
EMS |
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 |
Green Product |
RoHS, CRoHS, WEEE |
• Power Requirements |
Power Consumption |
UPort 1250 (bus power): 360 mA @ 5 VDC
UPort 1250I (12 to 48 VDC external power): 200 mA @ 12 VDC |
• MTBF (mean time between failures) |
Time |
563,179 hrs |
Database |
Telcordia (Bellcore), GB |
|
|
