C104HS-DB25M - *Discontined* - 4 Port ISA Board, w/ DB25M Cable, RS-232, w/ Surge by MOXA
|
|
|
** Phase Out-Dec 2017 **
|
|
|

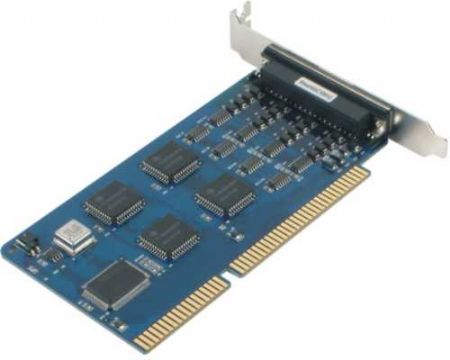

The 4-port C104H/HS ISA boards offer users an economical, high performance multiport serial communication solution for connecting terminals, modems, printers, data acquisition equipment, and other serial devices to a PC. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the 4 RS-232 ports supports a super fast 921.6 kbps baudrate.
• Hardware |
Comm. Controller |
16C550C or compatible x 4 |
Bus |
16-bit ISA |
Connector |
DB37 female |
• Serial Interface |
Number of Ports |
4 |
Serial Standards |
RS-232 |
Max. No. of Boards per PC |
4 |
• Serial Line Protection |
ESD Protection |
25 kV on the board (C104HS only) |
• Performance |
Baudrate |
50 bps to 921.6 kbps |
• Serial Communication Parameters |
Data Bits |
5, 6, 7, 8 |
Stop Bits |
1, 1.5, 2 |
Parity |
None, Even, Odd, Space, Mark |
I/O Address |
0x0000-0xFFFF (default = 0x180) |
IRQ |
2 (9), 3, 4, 5, 7, 10 (default), 11, 12, 15 |
• Serial Signals |
RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
• Operating Systems |
Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows 3.x, DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
Fixed TTY Drivers |
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x |
Note |
Please refer to Moxa’s website for the latest driver support information. |
• Physical Characteristics |
Dimensions |
83 x 157 mm (3.27 x 6.18 in) |
• Environmental Limits |
Operating Temperature |
0 to 55°C (32 to 131°F) |
Storage Temperature |
-20 to 85°C (-4 to 185°F) |
Ambient Relative Humidity |
5 to 95% (non-condensing) |
Altitude |
Up to 2000 m |
Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
• Standards and Certifications |
EMC |
CE, FCC |
EMI |
EN 55022, FCC Part 15 Subpart B Class A |
EMS |
EN 61000-4-2, EN 61000-4-3, EN 61000-4-4 |
Green Product |
RoHS, CRoHS, WEEE |
• MTBF (mean time between failures) |
Time |
629,545 hrs |
Database |
MIL-HDBK-217F, GB 25°C |
• Power Requirements |
Power Consumption |
100 mA max. @ +5 V, 100 mA max. @ +12 V, 60 mA max. @ -12 V |
|
|
