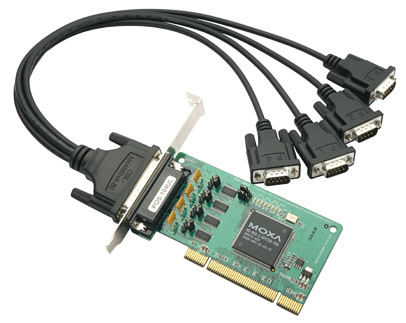

Moxa POS-104UL-DB9M - 4 Port UPCI Board, w/ DB9M Cable, RS-232, LowProfile
by MOXA
|
|
|
|
- Over 800 kbps data throughput, for top performance
- Power options for each port: 5V (output), 12V (output), and RI (input)
- Serial port power from bus or power supply
- 921.6 kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Compatible with 3.3/5V PCI and PCI-X
- Low profile board, suitable for compact-sized PCs
- Drivers provided for a broad selection of operating systems, including the latest Windows and Linux
15 kV ESD protection on the board
Wide temperature model available for -40 to 85°C environments
|
|
|
The POS-104UL is a smart, 4-port Universal PCI serial board designed for POS and ATM applications and for use by industrial automation system manufacturers and system integrators. The POS-104UL is compatible with all major operating systems. In addition, each of the 4 RS-232 serial ports supports data rates up to 921.6 kbps, and provides full modem control signals to ensure compatibility with a wide range of serial peripherals. The POS-104UL supplies 5 or 12 volts of power to each serial port, and works with both 3.3V and 5V PCI buses, making it suitable for installation in most PC servers.
| • Hardware |
| Comm. Controller |
MU860 (16C550C compatible) |
| Bus |
32-bit Universal PCI |
| Connector |
DB44 female |
| • Serial Interface |
| Number of Ports |
4 |
| Serial Standards |
RS-232 |
| Max. No. of Boards per PC |
4 |
| • Serial Line Protection |
| ESD Protection |
15 kV on the board |
| • Performance |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF |
| I/O Address |
Assigned by BIOS |
| IRQ |
Assigned by BIOS |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI (optional) |
| • Operating Systems |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), DOS, Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
QNX 6, SCO OpenServer, UnixWare 7, Solaris 10, FreeBSD |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x |
| Note |
Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics |
| Dimensions |
64.4 x 120 mm (2.53 x 4.72 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications |
| EMC |
CE, FCC |
| EMI |
EN 55022, FCC Part 15 Subpart B Class B |
| EMS |
EN 61000-6-2, EN 61000-6-4, IEC 61000-4-2, IEC 61000-4-3 |
| Green Product |
RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) |
| Time |
2,124,022 hrs |
| Database |
Telcordia (Bellcore), GB |
| • Power Requirements |
| Power Consumption |
145 mA @ +5 V
Power Output (per port): 1 A @ 5 V, 1 A @ 12 V |
|
|
|
|
