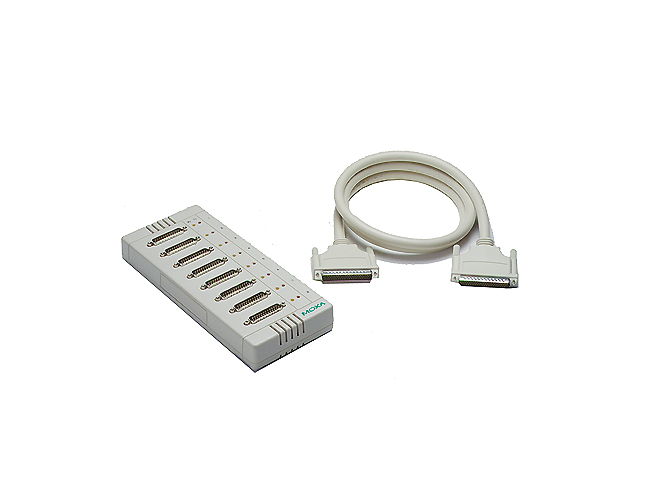

Moxa OPT 8S - 8 Port Connection Box, DB25F, w/ Surge
by MOXA
|
|
|
|
8 Port Connection Box, DB25F, w/ Surge
|
|
|
DB62 male to DB62 male 150 cm connection cable for connecting to the serial board
| • Connectors |
| Board-side |
DB62 male x 1 |
| Device-Side |
DB25 female x 8 |
| • Specifications |
| LEDs |
TxD, RxD indicators for each device-side port |
| Baudrate |
50 bps to 921.6 Kbp |
| Dimensions |
247 x 108 x 35 mm (9.7 x 4.3 x 1.4 in) |
| Power Consumption |
25 KV ESD, 2 KV EFT surge protection |
| • Included Accessories |
| Connection Cable |
DB62 male to DB62 male, 150 cm connection cable
(for connecting to serial board) |
|
|
|
|
