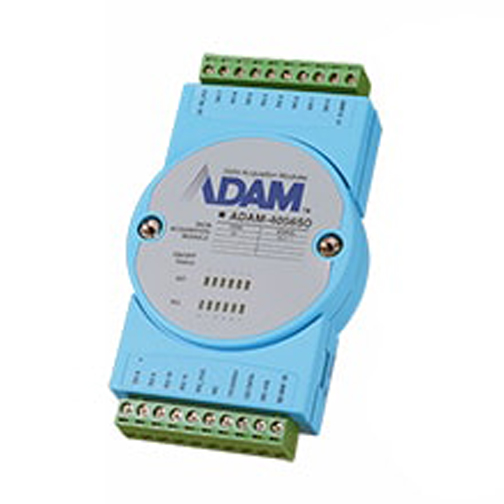

Advantech ADAM-4056SO-B - 12-Ch Source Type Isolated DO Module w/ Modbus
by Advantech
|
|
|
|
12DO(Source type) Modbus RS-485 Remote I/O
- 12ch source type digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 5000VDC isolation protection
|
|
|
Advantech ADAM-4056SO-B
12DO(Source type) Modbus RS-485 Remote I/O
- 12ch source type digital output
- Protocols:Modbus RTU,ASCII
- Watchdog timer to recover the system
- 5000VDC isolation protection
Advantech ADAM-4056SO-B Specification
- Interface: RS-485
- Isolation Voltage: 5000 VDC
- Operating Temperature: -10~70ºC
- Connectors: 2 x 10-pin plug-in screw terminal
- Protocol: ASCII comand, Modbus/RTU
- Channels: 12
- Output type: source
- Output Voltage: 10~35 VDC
- Sink Current: 1 A max./ channel
- Input Voltage: 10~30 VDC
- Certification: CE, FCC
|
|
|
|
