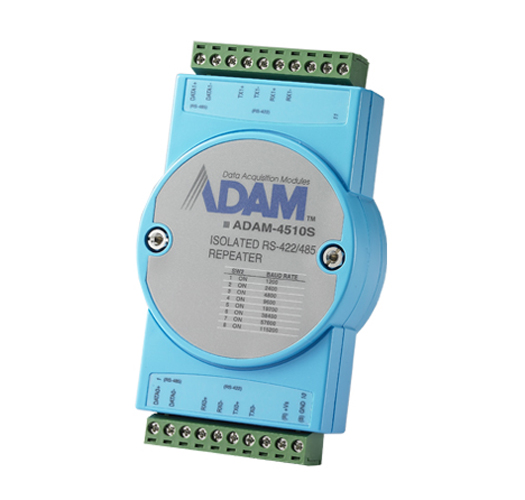

Advantech ADAM-4510S - *Discontinued* - ISOLATED RS-232/422 REPEATER
by Advantech
|
|
|
|
- Automatic RS-485 data fl ow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- Networking up to 1200 meters (4000 feet)
- Reserved space for termination resistors
- Power and data fl ow indicator for troubleshooting
- Power requirement: +10 to +30 VDC
- Mounts easily on a DIN-rail, panel or piggyback
|
|
|
Most industrial computer systems come with standard RS-232 serial ports. Though widely accepted, RS-232 has limited transmission speed, range, and networking capabilities. The RS-422 and RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The ADAM-4520/4522 converter lets you take advantage of RS-422 and RS-485 on systems originally equipped with RS-232. It transparently converts RS-232 signals into isolated RS-422 or RS-485 signals. You do not need to change your PC's hardware or your software. The ADAM-4510S repeater simply amplifies, or boosts, existing RS-422/485 signals to enable them to cover longer distances. It extends the communication distance by 4000 ft. (1200 m) or increases the maximum number of connected nodes by 32.
General
- Connectors: 2 x plug-in terminal blocks (#14 ~ 22 AWG) (RS-422/485)
- Isolation Voltage: 3,000 VDC (ADAM-4510S)
- Power Consumption: 1.4 W @ 24 VDC
Serial Communications
- Input: RS-485 (2-wire) or RS-422 (4-wire)
- Output: RS-485 (2-wire) or RS-422 (4-wire)
- Speed Modes (bps): 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, RTS control and RS-422 (switchable)
|
|
|
|
