Automatic internal RS-422/485 bus supervision
- No external flow control signals required for RS-485
- Serial type support auto detect and switch
- Supported baud rate up to 115.2Kbps
- Reach distance up to 4000 feet (1200m)
- Support multiple baud rate and multiple data format
- Reserved space for termination resistors (R8,R9)
- Power and data flow indicator for troubleshooting
- Power requirement : +9 ~ 30VDC
- DIN-Rail and wall mounting enabled
|
|
|

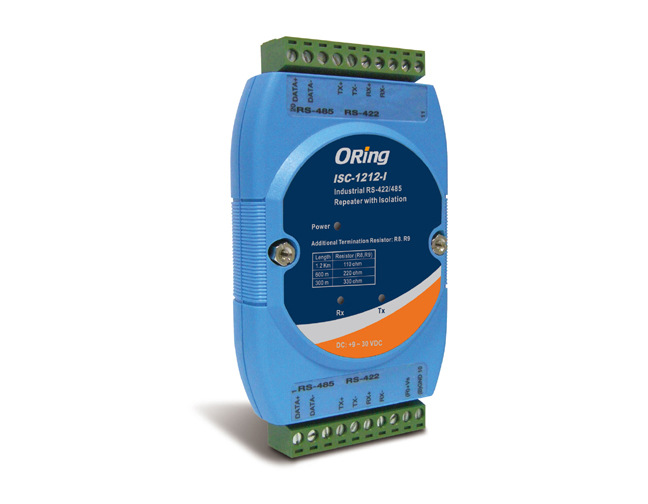

The ISC-1212-I is a RS-422/485 repeater which boosts the RS-422/485 signals to extend the reach distance up to 4000 ft (1200m) and increase the maximum number of connection up to 128 nodes. With a special circuitry, ISC-1212-I is able to automatically detect the data flow and switch the direction of the data lines accordingly. “Auto baud rate detector” enables ISC-1212-I to automatically configure RS-422/485 signals to any baud rate without external switch setting. Build in opto-isolations on ISC-1212-I provides 3000VDC of isolation to protect the host computer from destructive voltage spikes on the RS- 422/485 data lines. ISC-1212-I also offers internal surge-protection on the data lines. The internal high-speed transient suppressors on each data line protect the module from dangerous voltages levels or spikes. Therefore, the ISC-1212-I is a reliable RS-422/485 repeater and can satisfy most demand of operating environment.
| Physical Ports |
|
| RS-422/485 Connector |
10-pin terminal block |
| RS-422/485 Signals |
RS-422 : TX+, TX-, RX+
RX-RS-485 : Data+, Data- |
| Baud Rate |
300 ~ 115.2 Kbps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
XON/XOFF(software)
Auto Hardware Direction Control for RS-485 |
| LED Indicators |
|
| Power Indicator |
Green : Power LED x 1 |
| TxD Indicator |
Green LED x 1 |
| RxD Indicator |
Red LED x 1 |
| Power |
|
| Input Power |
+9 ~ 30 VDC power inputs on 10-pin terminal block |
| Power Consumption (Typ.) |
0.7 Watts. |
| Physical Characteristics |
|
| Enclosure |
IP-30 |
| Dimensions (W x D x H) |
71.2(W) x 25.3(D) x 100.6(H) mm (2.8x1x3.96 inch.) |
| Weight (g) |
130g |
| Environmental |
|
| Storage Temperature |
-25 to 85°C (-13 to 185°F) |
| Operating Temperature |
-10 to 70°C (14 to 158°F) |
| Operating Humidity |
5% to 95% Non-condensin |
| Regulatory Approvals |
|
| EMI |
FCC Part 15, CISPR (EN55022) class A, |
| EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
| Shock |
IEC60068-2-27 |
| Free Fall |
IEC60068-2-32 |
| Vibration |
IEC60068-2-6 |
|
|
