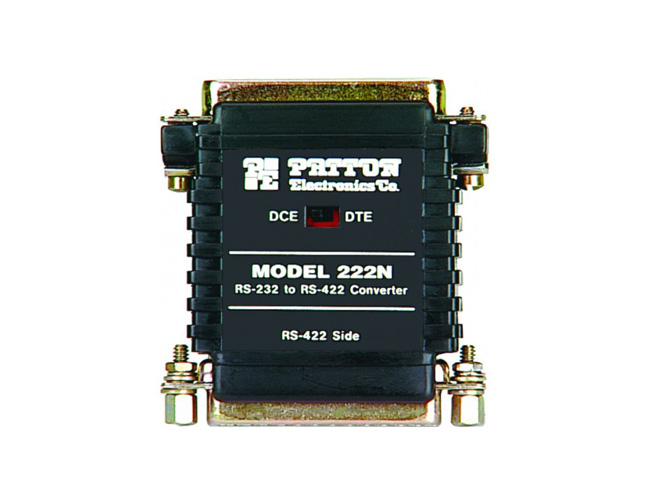

The Patton Model 222NF-25F Series of converters now comes in two "flavors": The Model 222N allows an RS-232 device with DB-25 port to connect to an RS-422 device up to 4000 feet away over two twisted pair. The Model 222N9 does the same thing for an RS-232 device with a DB-9 port (now called EIA-574). Both converters support data rates up to 19.2 kbps, and require no AC power or batteries for operation. All handshaking lines are looped back. The Model 222NRC is a dual rack card version of the Model 222N, with two converters in one card!
Data Format: Asynchronous
Data Rate: 0 to 19,200 bps (no strapping)
Control Signals: CTS turns ON immediately after the terminal raises RTS; DSR and DCD turn ON immediately after the terminal raises DTR
Transmit Mode: Full duplex, 4-wire
Transmit Level: 0 dBm
Connectors: Model 222N - Male or female DB-25 (RS-232 side); Male or Female DB-25, RJ-11 jack, RJ-45 jack or terminal posts (RS-422 side). Model 222N9 - Male or female DB-9 (EIA-574 side); RJ-11 jack, RJ-45 jack or terminal posts (RS-422 side).
Power Supply: None required; uses ultra low power from EIA data and control signals
Dimensions: Model 222N - 2.20 x 1.75 x 0.75 (5.6 x 4.4 x 1.9 cm) Model 222N9 - 2.50 x 1.20 x 0.75 (6.4 x 3 x 1.9 cm)
