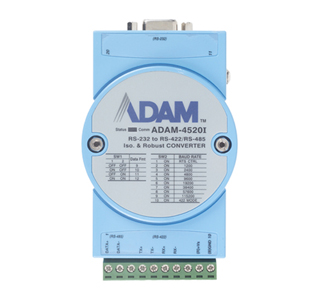

Advantech ADAM-4520I - *Discontinued* - WIDE-TEMP RS-232 TO RS-422/485 CONVERTER
by Advantech
|
|
|
|
- Wide Operating Temperature: -40 ~ 85° C
- Automatic RS-485 data flow control
- 3000 VDC isolation protection
- Surge protection RS-485 data line
- Transmission speed up to 115.2 Kbps
- Networking up to 1200 meters (4000 feet)
- Reserved space for termination resistors
- Power and data flow indicator for troubleshooting
- Power requirement: +10 to +48 VDC
- Mounts easily on a DIN-rail, panel or piggyback
|
|
|
The ADAM-4520I (RS-232 to RS-422/485 converter) is designed more rugged than previous models which have wider operating and storage temperatures, can accept a wider power input, and have excellent anti-noise design. Moreover,it provide ssignal isolation (3,000VDC) protection and power surge (50V) protection. These industrial-grade features ensure robust and reliable operation in harsh environment applications.
General
- Connectors: 1 x plug-in terminal block (#14 ~ 22 AWG) (RS-422/485) 1 x DB9-F (RS-232)
- Power Consumption: 1.2 W @ 24 VDC
Communications
- Input: RS-232 (DB9)
- Output: RS-485 (2-wire) or RS-422 (4-wire)
- Speed Modes (bps): 1,200, 2,400, 4,800, 9,600, 19.2 k, 38.4 k, 57.6 k, 115.2 k, RTS control and RS-422 (switchable)
- Supports Auto Baud-Rate
|
|
|
|
