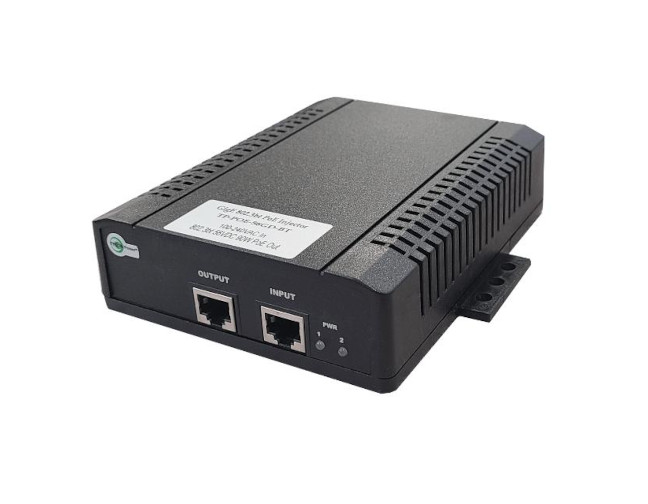

Tycon Systems TP-POE-56GD-BT - 100-240VAC Input, 56V 802.3bt 4Pair Gigabit PoE Injector, 90W, with US Power Cord
by TYCON SYSTEMS
|
|
|
|
- 90W 802.3bt Output Power
- Remotely Power Equipment thru CAT5+ Cable up to 100m
- Built in Ethernet and AC Surge Protection
- Autoranging Switching Power Supply
- Short Circuit, Over Current and Over Voltage Protection
- 10/100/1000/5000Mb Compatible
- High Temperature Industrial Operation -40C to +70C
- DIN Rail Mounting clips included
|
|
|
TP-POE-56GD-BT_DESCRIPTION.html
The TP-POE-56GD-BT Power over Ethernet Power Injectors offered by Tycon Power® are quality 5 Gigab \nmidspan power sources for years of reliable operation even in the toughest conditions. They accept data-in to \nshielded RJ45 Jack and provide surge protected data-out and power on the shielded RJ45 output jack. They work \nsupplying power to the remote device on all 8 Ethernet wires. The Ethernet spec supports distances up to 100m (3 \nfeet \nThe units are auto-ranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supp \nregulated 56VDC at the output. They have various protections for surge, short circuit, overload and overvoltage. Th \nhave total power output up to 90W. They are fully compatible with the IEEE802.3bt specification which means they a \nbackward compatible with 802.3at PoE.
|
|
|
|
