ENC-DC-10x8x3 - Die Cast Aluminum Outdoor Enclosure. 10 x 7.75 x 3' inside, with RJ45 feedthru and pole/wall mounts by Tycon Systems

ENC-DC-10x8x3 - Die Cast Aluminum Outdoor Enclosure. 10 x 7.75 x 3" inside, with RJ45 feedthru and pole/wall mounts
by Tycon Systems

Write a review Write a review
  • Weatherproof Nema 4X / IP65, UV resistant , outdoor enclosures
  • Choice of Die Cast 10x 8x3” or Polycarbonate 14x10x5” or Steel 23 x1 4 x1 2 "
  • Gasket sealed
  • Weatherproof cable feedthru



Mfg SKU # : ENC-DC-10x8x3
Our Price : $69.95
Stock : 423
Quantity :

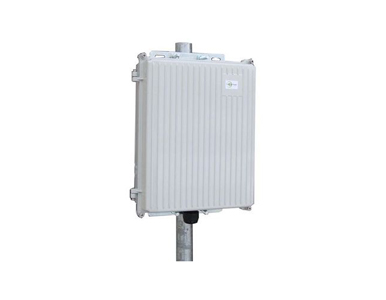

ENC-DC-10X8X3 is outdoor weatherproof hinged lid die cast aluminum enclosure with pole / wall mounting system. Silicon gasket sealed and powder coat painted for long life in harsh conditions.

Equipped with two 20mm holes for RJ45 feedthru (included) and three double D cutout for N Connectors. The enclosure comes with an internal aluminum mounting plate, two RJ45 Cable Glands and hole plugs for three double D cutouts. The enclosure is vented.

The enclosure also comes with U-Bolt mounts for mounting to a 2" pole or it can be wall mounted with the included brackets.

Enclosure Type Die Cast Aluminum with powder coat paint
Weatherproofing Nema 4X / IP65
Enclosure Mounting Wall or pole mount with included U - Bolts for up to 1.6”
Interior Mounts Qty 94mm threaded standoffs
Enclosure External Size 11 x 8.5 x 3.5” (279 x 216 x 89mm)
Enclosure Internal Size 10 x 7.75 x 3” (254 x 197 x 76mm)
Weight 4lb (1.8kg)
