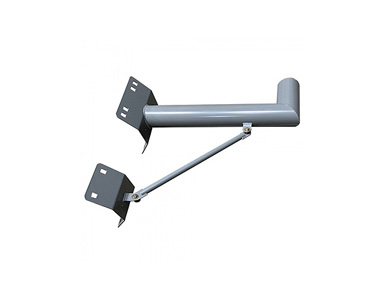

TPSM-650-SPM - Side pole mount for 650W to 720W solar array. Does not include Pole Straps. by Tycon Systems

TPSM-650-SPM - Side pole mount for 650W to 720W solar array. Does not include Pole Straps.
by Tycon Systems
Write a review Write a review
  • Utilizes Components from TPSM-250X4-TP or TPSM350X2-TP to Create a Side of Pole Mount for two 250- 360W Solar Panels



Mfg SKU # : TPSM-650-SPM
List Price : $749.95
Our Price : $735.00
Stock : 12
Quantity :

Tycon Solar® TPSM-650-SPM versatile side of pole accessory provides a method to adapt the TPSM-250x4-TP or TPSM-350X2-TP ground mount systems for pole mounting. Typical uses would be to enable mounting of two 72cell panels to a concrete or steel pole. Using commercially available pole straps the mounts can adapt to an 8-14” diameter pole.

Adapter Outside Diameter 141mm (5.563”)
Adapter Inside Diameter 128mm (5.047”) (5” Sched 40)
Standoff from Pole 914mm (36”)
Vertical Offset 190.5mm (7.5”)
Pole Strap Slots (Qty 12) 25.4 x 25.4mm (1 x 1”)
Pole Size Supported 203-356mm (8-14”)
Number of 72cell Panels Supported 2 Max (~720W Total)
Tycon Solar Mount Compatibility TPSM-250X4-TP, TPSM-350X2-TP
Achievable Tilt 35 – 65 degrees
Mounting method Commercially Available Pole Straps (Not Included)
Max wind speed 100mph
Shipping Dimensions 1016 x 508 x 508mm (40 x 20 x 20”)
Shipping Weight 33.6kg (74lbs)
