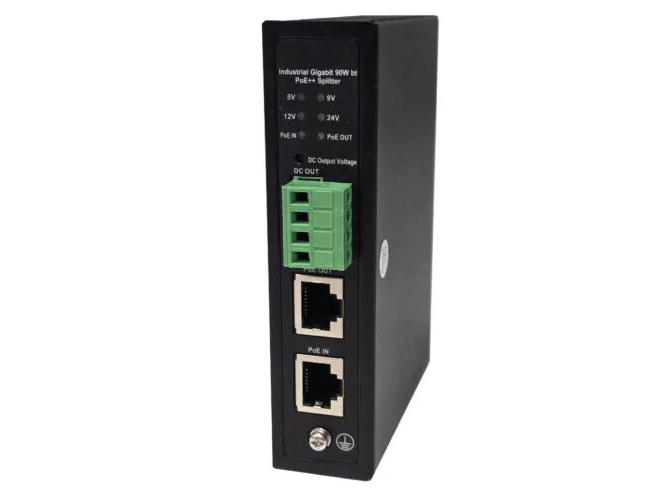

Tycon Systems POE-SPLT-BT-UNI-P - 90W PoE Splitter, 802.3af/at/bt compatible, 5/9/12/24V Selectable Voltage Output 72W, Green wi
by TYCON SYSTEMS
|
|
|
|
• Selectable VDC Output: 5V,9V,12V, 24V
• Combined Outputs up to 72W with 90W Input
• Gigabit Ethernet compatible
• Industrial Temperature Operation: -40C to +75C
|
|
|
The POE-SPLT-BT-UNI-P Active PoE splitters are unique, Gigabit speed, Power over Ethernet adapters which convert an 802.3af/at/bt PoE input to an 802.3af/at/bt PoE output plus a selectable VDC output of 5V, 9V,12V or 24VDC on a wire terminal connector.
They have various protections for short circuit, overload and over temperature. If powered by 802.3bt PoE @ 90W the PoE Splitter total output power is 72W Max. If powered by 802.3at @ 30W then total output power is 24W. If powered by 802.3af
@15.4W the total output power is 12W. Input power should be ~20% higher than required total output power.
| |
POE-SPLT-BT-UNI-P |
| Output Voltage ( with 90W 802.3bt PoE input) |
- 5VDC @ 14A
- 9VDC @7.8A
- 12VDC@5.9A
- 24VDC @3A
- 48VDC on PoE Out Port (802.3af/at/bt compatible)
|
| Max Combined Total Output Power |
72W with 90W PoE Input (802.3bt)
24W with 30W PoE Input (802.3at)
12W with 15.4W PoE Input (802.3af) |
| Output Connectors |
Shielded RJ45 & Wire Terminal (up to 12AWG) |
| PoE Input (RJ45) |
802.3af/at/bt 48VDC (2 or 4 pairs), 44V to 57V |
| Ethernet Speed |
10/100/1000MB (Gigabit) |
| Efficiency |
80% Min |
| LED Function |
- PoE IN Steady Green = Power is Stable
- PoE Out Steady Green = PoE Out is delivering PoE to a device
- Voltage Indicator LEDs = Shows selected VDC Output Voltage
|
| EMC Standards |
FCC Class B NE55022 Class B |
| Operating Temperature |
-40 to +75°C ( -40F to +167°F) |
| Operating Humidity (RH) |
5% - 90% non condensing |
| Storage Temperature |
-40 to +75°C (-40 to +167°F) |
| Dimensions (LxWxH) |
119 x 85.5 x 28mm ( 4.7 x 3.4 x 1.1” ) |
| Weight |
380g (13.4oz) |
| Warranty |
3 Years |
|
|
|
|
