NT, 8 VoIP Calls, or 4 SIP-SIP Calls (SIP b2b UA)upgradeable (max.
by PATTON

2/4/8 Ports Quality ISDN VoIP—2, 4 or 8 ISDN BRI S0 ports. Up to 10 G.722 or up to 16 T.38 or G.711 calls simultaneously. Using SRTP, up to 10 simultaneous calls.
Full Telephony Features—SessionRouter™ allows flexible call routing and numbering plan adaptations, CLIP/CLIR, hold, transfer, 3-way conferencing (Roadmap) and much more.
Management & Provisioning— Web-based management, WEB Wizard, SNMPv3, command line interface, auto-provisioning separate config domain support, secure provisioning for configuration and software upgrades.
Network Connectivity—One 10/100/1000 Ethernet port with auto MDI-X.Ethernet. Supports VLAN, TOS and Diffserv tagging. Basic IPv6 support.
Full VoIP protocol support—SIPv2, SIP v2 over TLS, ISDN, DSS1, QSIG**, T.38, G.722 HD voice, RTP Security with SRTP, fax and modem bypass, DTMF relay.
Outstanding Interoperability—Interoperable for voice and T.38 fax with leading SIP service providers, softswitch vendors, and Asterisk™ IP-PBX.
High Precision Clock (HP)*** Option—DECT PBX interoperability and improved fax performance with Stratum 3 CO quality clock.
Supported by SmartNode™ Redirection Service—A free service enabling zero-touch mass deployments for Service Providers and Distributors with auto-provisioning servers (Learn More).
Why SmartNode™?

Patton Quality
Made in the USA
Unrivalled Customer Support
FREE Support and Upgrades

Description
Specification
Datasheet

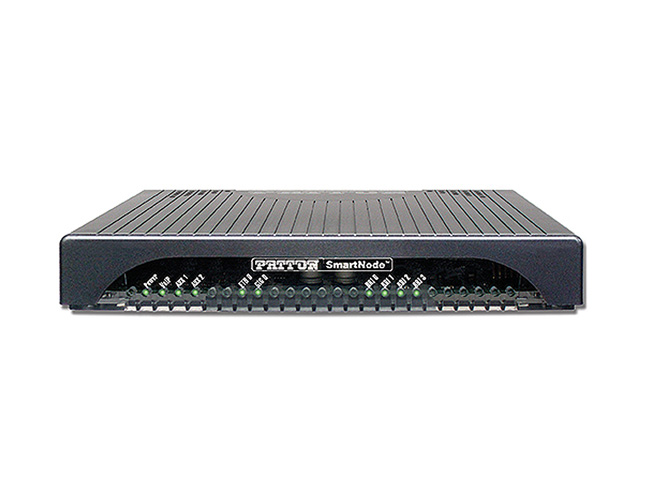

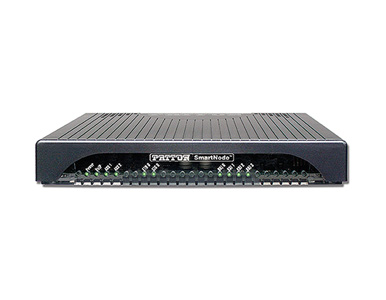

The Patton Model SN4131-2ETH4BIS8VHP-EUI are the next-generation ISDN BRI models of the proven market-leading SmartNode VoIP product family. The available 2, 4 or 8-port configurations fit the requirements of small and medium-sized enterprises looking for a cost-effective way to bridge PBX systems on multiple sites or connect them to a public Internet telephony service.

By connecting a PSTN line and an ISDN PBX to the SmartNode, it is secured against SIP trunk outages (fallback routing). If available, the PSTN line can also synchronize the gateway. For applications without a PSTN line available, the optional ISDN HP (high precision clock) provides error-free ISDN data and fax transmissions.

Like every Trinity SmartNode, the SN4130 comes with a built-in WEB Wizard for fast and easy configuration. You can build your own Web interface usingthe WEB Wizard functionalities.

Voice Signaling	SIPv2 SIPv2 over TLS** SIPv2 over IPv6 SIP call transfer, redirect Overlap or en-bloc dialing DTMF in-band, out-of-band Configurable tones
Call Routing & Services	Regular expression number matching Regular expression number manipulation Least Cost Routing Number blocking Short-Dialing Digit collection Distribution- and Hunt-Groups
ISDN	2/4/8 BRI S0 ports*, RJ-45 NT/TE configurable per port Built-in line power on each port (total 4W) DSS1, Q.921, Q.931. NTT-64 HP* High Precision Clock Stratum 3 CO Point-point and point-multipoint Optional QSIG support**
Voice Processing	G.722 G.711m/A-law G.723.1 (6.4 kbps) G.729, 729a, 729ab (8 kbps) G.726 (16, 24, 32, 40 kbps) AMR-NB (4.75, 5.15, 5.9, 6.7, 7.4, 7.95, 10.2, 12.2kbps) iLBC at 13.33 kbps (SIP-SIP only) G.168-2004 echo cancellation (128ms) 4/8/16 simultaneous low-bandwidth voice or T.38 fax calls 2/5/10 HD calls with SRTP Up to 200 SIP to SIP calls ** Up to 4 SIP transcoded calls* Transparent ISDN data Silence suppression and comfort noise Adaptive and configurable dejitter buffer Configurable packet length
Packet Tagging and VLAN	IEEE 802.1p, IEEE 802.1Q, 4096 VLANs (Tag insertion/deletion), TOS, DiffServ Labeling
Connectivity	One 10/100/1000Base-T Ethernet port USB 2.0 host port Auto-MDIX DHCP Client PPPoE Client (multi-session) VLAN support, Secondary IP IPv4 Basic IPv6 ICMP ACL DNS, DynDNS DHCP Server SNTP Client
Management	Patton Cloud Orchestrated Customizable WebWizard, Web-based GUI, CLI Telnet and HTTP access TR-069, TFTP, HTTP, HTTPS configuration up- and download TR-069, TFTP, HTTP, HTTPS firmware upgrade, Dual Image SNMPv3 agent - MIB II and private MIB Separate config domain (LAN side config and WAN side config) Built-in diagnostic tools Secure Auto-Provisioning with built in root CA
Power Consumption	< 10W
Packaging	Desktop/Wall-mount plastic chassis
Dimensions &Weight	Plastic enclosure (2-4BIS models): Dimensions: 8.2w x 1.3h x 6.5d inch (20.8w x 3.4h x 16.5d cm) Weight: 2.12lbs/ 961g Metal enclosure (8BIS model only): Dimensions: 7.5w x 3.75h x 10.25d inch (37.46w x 9.525h x 26.035d cm) Weight: 2.74lbs/ 1.242kg
Environment	Operating temperature: 32–104°F (0–40°C) Operating humidity: up to 90%, non-condensing
Compliance	FCC Part 15 Class A (US EMC) CE per RTTE 99/5/EC (EMC and LVD)
Safety	EN60950 TBR-3 (ISDN BRI/So)
