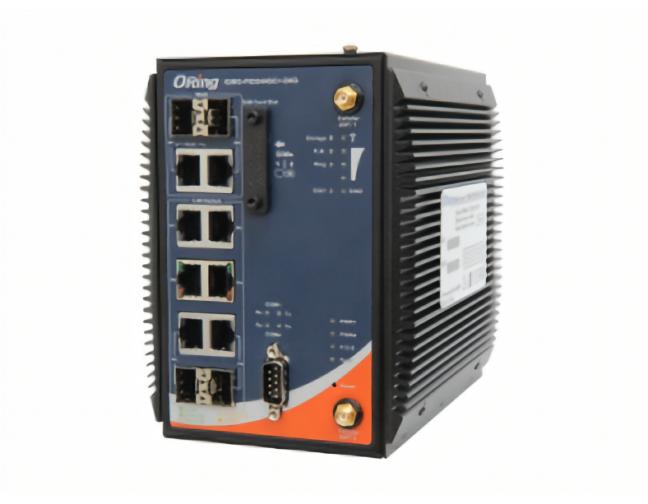

ORing IGMG-P83244GC+-D4G-EU - 4G LTE M2M IoT Gateway, 4 GE + 4 1000 combo, 2 Serial, EU band
by ORing Industrial Networking

Hardware features: IGMG-P83244GC+-D4G-EU is a breakthrough IoT M2M industrial grade gateway which is a combination of powerful hardware and software capabilities. It uses a dual-core ARMv7 Cortex-A9 CPU with an operating speed of up to 1.3 GHz. Supporting multiple I/O, it has an integrated 8-port (4+4 Combo for copper and fiber) Gigabit Ethernet switch, including 6 LAN and 2 WAN ports. Additionally, there are two serial ports for RS-232/422/485 and RS-422/485 communication standards. All gateway's ports support Modbus TCP and RTU protocols for connection with Ethernet and serial end-devices like PLCs, machines, and sensors at the factory floor, providing possibilities of monitoring and controlling them. IGMG-P83244GC+-D4G has successfully passed 4G LTE connectivity tests with AT&T® and is certified to operate in this carrier's network. With telecom certification and dual SIM card support for redundancy or load balance function, it can provide the highest reliability level for cellular connectivity. Thanks to built-in mSATA SSD storage with 64GB capacity (optionally up to 256GB), it provides capabilities for huge IoT data logging. Rugged and fanless design for -40 to +75°C degrees of operating temperature range makes IGMG-P83244GC+-D4G a perfect solution for industrial applications.

Software features: IGMG-P83244GC+-D4G introduces cutting-edge features and defines new standards for the IoT gateway market. Thanks to ORing branded Open Gateway software feature, it simplifies IoT solution deployment to the maximum. Connecting a variety of end-devices, very often with different communication interfaces, to different cloud platforms has never been so easy. Open Gateway protocol converter, from a simple and user-friendly web-based configuration interface, turns the gateway into a transparent man-in-the-middle between Modbus field devices and MQTT/CoAP/LWM2M servers.

Built-in Node-RED, a free open-source programming tool, can be activated from the IGMG-P83244GC+-D4G web interface with just a single button click. It provides useful and powerful flow-based development features. The browser-based editor makes it easy to wire together data flows using the wide range of nodes in the palette, while also providing a capability for rapid Dashboard prototyping, including basic user interface components.

The most powerful feature of the IGMG-P83244GC+-D4G gateway is the Ignition SCADA software installed on board. Ignition, designed by Inductive Automation, is a web-deployed industrial application platform for HMI/SCADA/IIoT that has been deployed in more than 100 countries. Ignition provides unlimited licensing and open-standards connectivity. Thanks to the user-friendly and easy-to-learn dashboard designer, including an impressive number of standard and customized components, Ignition provides powerful visualization tools for displaying, controlling, alarming, historian, and reporting. IGMG-P83244GC+-D4G supports both Ignition and Ignition Edge. Depending on application needs, either can be easily chosen and activated by the user from the gateway's web interface. As the IGMG-P83244GC+-D4G gateway provides SSD storage for massive data collection, it also includes an integrated PostgreSQL Database, which by default is already connected with Ignition software. Users do not have to worry about additional software installation and configuration, as the gateway is ready out of the box.

Both Ignition versions by default run in a trial mode, which means a new user can easily learn how to use the software and test it before deploying it in the real system. The following table explains the differences between Ignition and Ignition Edge.
