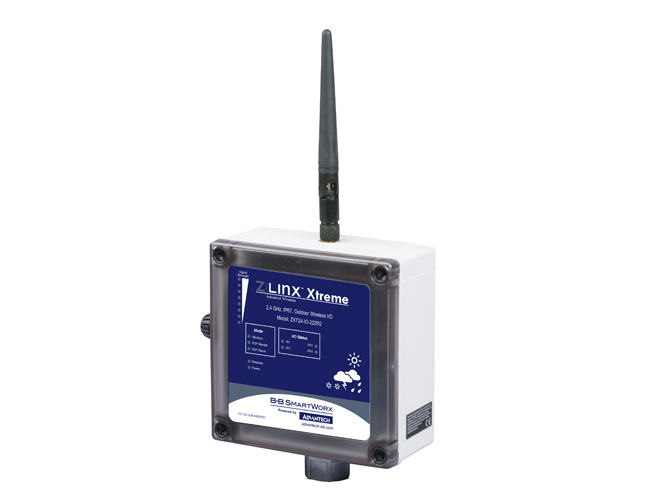

ZXT9-IO-222R2 - Zlinx Xtreme Wireless I/O 900MHz

Advantech ZXT9-IO-222R2 - Zlinx Xtreme Wireless I/O 900MHz, 2 Analog Inputs, 2 Analog Outputs, 2 Digital Inputs, 2 Digital Relay
by Advantech

IP67 rated for outdoor applications
Flexible configuration for multiple types of analog/digital I/Os
Modbus compatible
Range to 40 miles (64 km) Line of Sight & External Antenna
Heavy-duty machine mount industrial grade case and components
Signal strength indicator aids trouble shooting
900 MHz and 2.4 GHz versions
Wide operating temperature range -40° to 74°C
Versatile power 10- 30 VDC
AES Encryption
UL, Class1/Division2

Description
Specification
Datasheet

Do you need to monitor remote assets via discrete analog and digital sensors? Or do you need to control remote control equipment from a central SCADA/PLC? Is the remote equipment outdoor? Zlinx Xtreme I/Os can do the job faster, easier and less expensively than stringing cable.

These compact and rugged IP67 units are ideal for outdoor applications in extreme weather conditions for connecting remote I/Os to local I/Os wirelessly (via Peer-to-Peer Mode) or to connect remote I/ Os in multiple locations to a central PLC or SCADA or HMI system via a Serial Radio Modem (Via Modbus mode).

ZXT9-IO-222R2 Zlinx® Industrial Wireless products operate in license-free, Proprietary RF 900 MHz and 2.4 GHz ISM bands. Select the 900 MHz version for longer distances. For further flexibility, the output power is software selectable. The 900 MHz units offer 256 bit AES Encryption. The 2.4 GHz have 128 bit AES Encryption.

RF PROPERTIES
Physical Standard	802.15.4
FREQUENCY
ZXT9-IO-xxxx	900 MHz ISM (902-928 MHz)
TRANSMIT POWER
ZXT9-IO-xxxx	1 mW, 10 mW, 100 mW, 500 mW 1 W – Software Selectable
RECEIVER SENSITIVITY
ZXT9-IO-xxxx	-100 dBm
OVER THE AIR DATA RATE
ZXT9-IO-xxxx	9.6 or 115.2 kbps Software Selectable
OUTDOOR RANGE
ZXT9-IO-xxxx	Supplied Antenna 14 mi (23 km) High Gain Antenna 40 mi (64 km)
Range estimates based on optimal RF conditions and an unobstructed line of sight.
Transmission Method
ZXT9-IO-xxxx	FHSS
Modulation	FSK
Channel Capacity
ZXT9-IO-xxxx	10 hop sequences share 50 frequencies
Network Topologies	I/O to I/O: One-to-one (Peer-to-Peer mode) Radio Modem to I/O: One-to-many (Modbus I/O mode)
Encryption
ZXT9-IO-xxxx	256 bit AES
Supplied Antenna
ZXT9-IO-xxxx	Impedance – 50 Ω Connector – RPSMA Female VSWR – 2.0 Max (in-band) Gain – 3 dBi Polarization – Vertical Length – 7.8 in (198 mm)
Antenna Connection	RPSMA Male
Digital Inputs
Voltage Range Configuration	0 to 48 VDC PNP (default) / NPN (selectable)
Low Voltage (0)	1 VDC Maximum
High Voltage (1)	Greater than 1 VDC
Pull Up/Down Current	38 µA
Frequency Input	2 DIs per module software selectable as counters with 0 to 20 KHz range
Digital Outputs (Relay)
Number of Relays	2
Type	C (Normally Open and Normally Closed)
C (Normally Open and Normally Closed)	3 Terminals Per Relay (Common, NO, NC)
Output Connection	3 Terminals Per Relay (Common, NO, NC)
Comm. Connection	3.5 mm Terminal Block
Ratings	250 VAC @ 4 A, 30 VDC @ 4 A
Analog Inputs / Outputs
Ranges	0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA 4 to 20 mA
Resolution	16 bit (Inputs), 12 Bit (Outputs)
AI Load Resistance	100 MΩ - configured for Voltage 250 Ω - configured for Current
AO Output Current	1 mA maximum configured for Voltage
AO Source Load	450 Ω maximum configured for current
Input Protection	Over voltage to 2x max input voltage
Power
Power Connector	Terminal Block
Input Voltage	10 to 30 VDC
Power Use
ZXT9-IO-xxxx	6.8 W (maximum)
Terminal blocks
Wire Size	26 to 14 AWG
Torque	0.5 Nm (min) 0.6 Nm (max)
Environment
Dimensions	5.12x5.12x2.37 in /130.1x130.1x60.2 mm
Operating Temp	-40 to 74°C (-40 to 165°F)
Storage Temp	-40 to 85°C (-40 to 185°F)
Op Humidity	0 to 95% (Non-Condensing)
Enclosure Rating	IP67
Use	Indoor and Outdoor
Certifications
CE	EN55022: 2006 – Class A EN61000-6-1: 2006 – Heavy Industrial EN61000-4-2:2008 – ESD EN61000-4-3:2006 – EFT EN61000-4-6:2005 – Cond. Immunity
FCC	Class A FCC ID – ZXT9-RM – OUR-9XTEND FCC ID – ZXT24-RM – OUR-XBEEPRO
UL	C1D2, File – E245458
Controls and Indicators
Signal Strength	8 Green RSSI LED’s indicate signal strength
Power	Power
Receive Data	Green LED
Transmit Data	Green LED
Programming Port	USB
Reset	Push Button
