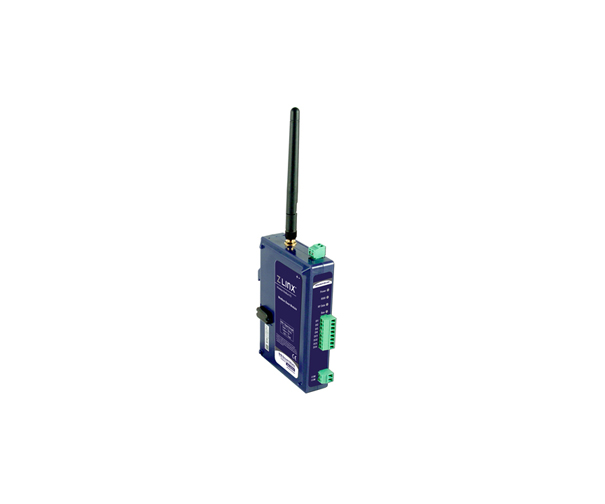

Advantech BB-ZZ9D-NB-LR-A - ZLINX IO, 900MHZ, 4DI 4DO, LONG RANGE, SOURCING
by Advantech
|
|
|
|
- Note: North America use only
- Modular, expandable A/D I/O wire replacement for serial communications - cable-free, license-free
- Baud rate: 9.6 or 115.2 kbps
- Wide operating temperature: 40 to +80 °C
- DIN rail mount, 35mm
- 10-48VDC or 24VAC power input (external power source required, not included, sold separately)
- Up to 23 km (14 mi) range (with optional antenna)
- High performance, low latency response rates. Point to point; point to multi-point.
- Software Selectable: RF Transmit Power, Over-the-Air Data Rate
|
|
|
Zlinx™ Wireless Modbus I/O is flexible enough to fit your applications. This plug-n-play unit combines traditional Modbus RTU remote analog and discrete I/O with built-in wireless connectivity. Wireless RTU serves as Modbus slave RTU in radio-based SCADA systems, or as a peer-to-peer communication platform. BUILT-IN ACTIVE REPEATER functionality ensures vital signals get through. MODULAR - Just snap on I/O and you are ready to communicate. WIDE TEMPERATURE - Meets most indoor or outdoor applications. RUGGED CIRCUITRY - Prevents signal degradation. 256-bit AES ENCRYPTION - Secures data. SELECTABLE RF TRANSMIT POWER- Allows you to optimize the transmitter power for your application. SELECTABLE OVER-THE-AIR DATA RATE - Allows you to decrease the O.T.A. data rate, effectively increasing the radio transmitter’s range. EXCEPTION REPORTING - In Modbus Mode, allows the reporting of possible problems with connected devices. FAIL-SAFE - Allows you to set I/O to a safe state in the event of a communications failure. CALIBRATION - Calculates correction factors to make I/O values better match your sensor. COMMUNICATION FAILURE ALARM - Allows the first DO to be configured as a COM failure alarm indicator. INVERT OUTPUT- Invert the logic of all DOs in peer-to-peer mode. IO MONITORING- Use Zlinx™ Manager Software to monitor your I/O. POWER SOURCE - 10 to 48 VDC or 24 VAC wide range power input. External power source required (not included, sold separately.)
|
|
