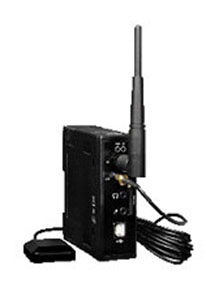

The GTM-201-3GWA is an industrial Tri-band 3G WCDMA cellular modem with RS-232 and USB interfaces working on frequencies of Tri-band WCDMA 2100/1900/850 MHz, and Quad-band GSM 850/900/1800/1900 MHz. The modem which supports up to 7.2Mbps downlink speed and 5.76Mbps uplink speed services can utilize the 3G/GSM/GPRS network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. The GTM-201-3GWA enables internet connection over 3G, when 3G service is available. It automatically selects 3G or GPRS continue to work.
Moreover, the GTM-201-3GWA has the integrated TCP,UDP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of GTM-201-3GWA, the systems can be SMS and 3G/GPRS connection applications with various PLC and PC. Moreover, with the voice interface, these modems can also be applied to the alarm system with sounds.
| 3G System |
| Frequency Band |
UMTS : 2100/1900/850 MHz |
| Data Transmission |
UMTS / HSDPA / HSUPA
Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps
|
| GSM / GPRS System |
| Frequency Band |
GSM : 850/900/1800/1900 MHz |
| GPRS connectivity |
GPRS class 12/10; GPRS station class B |
| DATA GPRS |
Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps |
| CSD |
Up to 14.4 kbps |
| Coding Schemes |
CS 1, CS 2, CS 3, CS 4 |
| SMS |
| SMS |
MT, MO, CB, Text and PDU mode |
| GPS System |
| Support Channels |
32 |
| Protocol Support |
NMEA 0183 |
| Comm. Interface |
| COM ports |
TxD,RxD,GND |
| COM Port Baud Rate |
9600 bps ~ 115200 bps |
| USB |
USB 2.0 (high speed) |
| USB Driver support |
Windows 98 / 2000 / XP / Vista / 7
LinPAC (Linux kernel 2.6) |
| LED Indicators |
| Power |
Red |
| 3G/GSM |
Green |
| Power |
| Protection |
Power reverse polarity protection |
| Frame Ground Protection |
ESD, Surge, EFT, Hi-Pot |
| Required Supply Voltage |
+10 VDC ~ +30 VDC |
| Power Consumption |
Idle: 25 mA @ 24 VDC; Data Link: 100 ~ 400 mA (peak) @ 24 VDC |
| Connection |
8-Pin 3.5 mm Removable Terminal Block |
| Reset Input |
| Input Type |
Isolated, 3750 Vrms |
| On Voltage Level |
+3.5 VDC ~ +30 VDC |
| Off Voltage Level |
+1 VDC max. |
| Input Impedance |
3 kΩ, 0.25W |
| Mechanical |
| Casing |
Plastic |
| Flammability |
UL 94V-0 materials |
| Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
| Installation |
DIN-Rail |
| Environmental |
| Operating Temperature |
-25 °C ~ +55 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
| Humidity |
5 ~ 90% RH, non-condensing |
|
