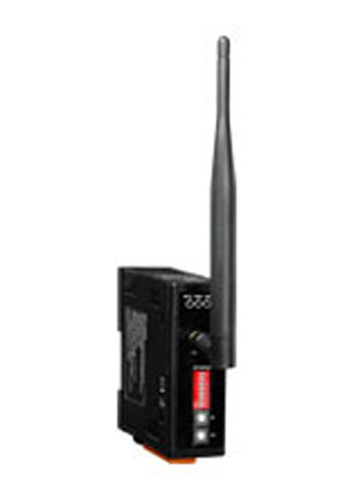

The SST-900B is a radio frequency modem with an RS-232/RS-485 interface port and is designed for data acquisition and control applications between a host and remote sensors. It is also useful for those applications where the installation of cable wire is inconvenient.
The SST-900B module is a wireless module that works in a frequency range of 902-928 MHz, and includes adjustable 16 RF channels and each channel can be allocated one of sixteen group IDs. The SST-900B can be used not only in peer-to-peer mode but also in a multi-point structure.
Features
- Half-duplex up to 115200 bps
- Internal Self-Tuner
- ISM Band 900 MHz
- Typical wireless transmission range is 1000 meters (LOS)
- UI Confi guration via external switch
Wireless |
Operating Frequency Range |
915 MHz (902 MHz ~ 928 MHz) |
Channel Spacing |
1.5 MHz |
Transmit Power |
3 dBm |
Number of Channel |
16 |
Transmission Range |
Typical 700 m, Max. 1 Km |
Data Bit Error Rate |
@ -100 dBm |
Antenna |
Type |
3 dBi Omni-directional, bendable |
Connector |
Reverse Polarity SMA (RP-SMA) Plug (Male) |
Serial Link |
Interface |
RS-232 |
TxD, RxD, GND |
RS-485 |
D+, D-; internal self-tuner ASIC; Non-isolated |
Max. Data Transfer Rate (Half-duplex Mode) |
115200 bps |
Data Format |
N, 8, 1 or E, 8, 1 |
Power |
Operating Voltage |
+10 VDC ~ +30 VDC |
Mechanical |
Dimensions (W x H x D) |
84 mm x 107 mm x 33 mm |
Environment |
Operating Temperature |
-25 °C ~ +70 °C |
Storage Temperature |
-40 °C ~ +80 °C |
Humidity |
0 ~ 90% RH, Non-condensing |
|
|
