Moxa AWK-1131A-EU-T - 802.11n Access Point, EU band, -40 to 75 Degree C
by MOXA

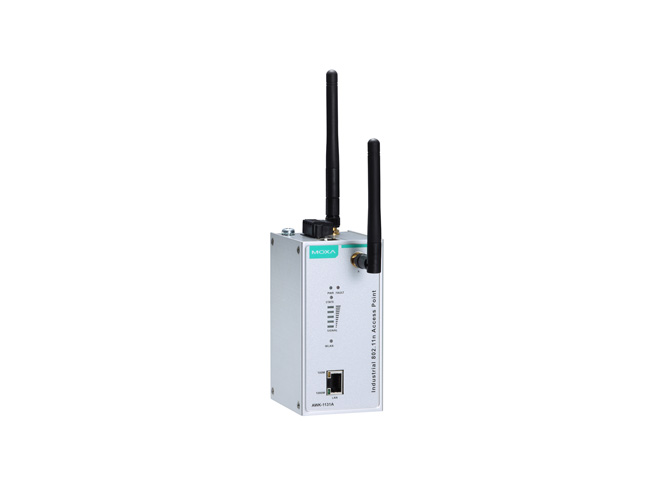

The AWK-1131A-EU-T industrial wireless AP/client meets the growing need for faster data transmission speeds by supporting IEEE 802.11n technology with a net data rate of up to 300 Mbps. The AWK-1131A is compliant with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply. The AWK-1131A can operate on either the 2.4 or 5 GHz bands and is backwards-compatible with existing 802.11a/b/g deployments to future-proof your wireless investments.

Improved Higher Data Rate and Channel Capacity

• High-speed wireless connectivity with up to 300 Mbps data rate

• MIMO technology to improve the capability of transmitting and receiving multiple data streams

• Increased channel width with channel bonding technology

• Supports flexible channel selection to build up wireless communication system with DFS

Specifications for Industrial-grade Applications

• Redundant DC power inputs

• Integrated isolation design with enhanced protection against environmental interference

• Compact aluminum housing, IP30-rated

WLAN Interface

• WLAN Standards

  802.11a/b/g/n
  802.11i Wireless Security

• Modulation Type

  DSSS
  OFDM
  MIMO-OFDM

• Frequency Band for US (20 MHz operating channels)

  2.412 to 2.462 GHz (11 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels)
  5.500 to 5.700 GHz (11 channels)
  5.745 to 5.825 GHz (5 channels)

• Frequency Band for EU (20 MHz operating channels)

  2.412 to 2.472 GHz (13 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels)
  5.500 to 5.700 GHz (11 channels)

• Frequency Band for JP (20 MHz operating channels)

  2.412 to 2.484 GHz (14 channels)
  5.180 to 5.240 GHz (4 channels)
  5.260 to 5.320 GHz (4 channels)
  5.500 to 5.700 GHz (11 channels)

• Wireless Security

  WEP encryption (64-bit and 128-bit)
  WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
  WPA/WPA2-Personal

• Transmission Rate

  802.11b: 1 to 11 Mbps
  802.11a/g: 6 to 54 Mbps
  802.11n: 6.5 to 300 Mbps

• Transmitter Power for 802.11a

  23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  20±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps

• Transmitter Power for 802.11n (5 GHz)

  23±1.5 dBm @ MCS0/8 20 MHz
  18±1.5 dBm @ MCS7/15 20 MHz
  23±1.5 dBm @ MCS0/8 40 MHz
  17±1.5 dBm @ MCS7/15 40 MHz

• Transmitter Power for 802.11b

  26±1.5 dBm @ 1 Mbps
  26±1.5 dBm @ 2 Mbps
  26±1.5 dBm @ 5.5 Mbps
  25±1.5 dBm @ 11 Mbps

• Transmitter Power for 802.11g

  23±1.5 dBm @ 6 to 24 Mbps
  21±1.5 dBm @ 36 Mbps
  19±1.5 dBm @ 48 Mbps
  18±1.5 dBm @ 54 Mbps

• Transmitter Power for 802.11n (2.4 GHz)

  23±1.5 dBm @ MCS0/8 20 MHz
  18±1.5 dBm @ MCS7/15 20 MHz
  23±1.5 dBm @ MCS0/8 40 MHz
  17±1.5 dBm @ MCS7/15 40 MHz

• Transmitter Power

• Transmitter Power

• Receiver Sensitivity for 802.11a (measured at 5.680 GHz)

  Typ. -90 @ 6 Mbps
  Typ. -88 @ 9 Mbps
  Typ. -88 @ 12 Mbps
  Typ. -85 @ 18 Mbps
  Typ. -81 @ 24 Mbps
  Typ. -78 @ 36 Mbps
  Typ. -74 @ 48 Mbps
  Typ. -72 @ 54 Mbps
  Note

• Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)

  Typ. -69 dBm @ MCS7 20 MHz
  Typ. -71 dBm @ MCS15 20 MHz
  Typ. -63 dBm @ MCS7 40 MHz
  Typ. -68 dBm @ MCS15 40 MHz
  Note

• Receiver Sensitivity for 802.11b (measured at 2.437 GHz)

  Typ. -93 dBm @ 1 Mbps
  Typ. -93 dBm @ 2 Mbps
  Typ. -93 dBm @ 5.5 Mbps
  Typ. -88 dBm @ 11 Mbps

• Receiver Sensitivity for 802.11g (measured at 2.437 GHz)

  Typ. -88 dBm @ 6 Mbps
  Typ. -86 dBm @ 9 Mbps
  Typ. -85 dBm @ 12 Mbps
  Typ. -85 dBm @ 18 Mbps
  Typ. -85 dBm @ 24 Mbps
  Typ. -82 dBm @ 36 Mbps
  Typ. -78 dBm @ 48 Mbps
  Typ. -74 dBm @ 54 Mbps

• Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)

  Typ. -70 dBm @ MCS7 20 MHz
  Typ. -69 dBm @ MCS15 20 MHz
  Typ. -67 dBm @ MCS7 40 MHz
  Typ. -67 dBm @ MCS15 40 MHz

• WLAN Operation Mode

  Access point, Client, Sniffer

• Antenna

  External, 2/2 dBi, Omni-directional

• Antenna Connectors

  2 RP-SMA female

Ethernet Interface

• Standards

  IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X)
  IEEE 802.3ab for 1000BaseT(X)
  IEEE 802.1X for authentication

• 10/100/1000BaseT(X) Ports (RJ45 connector)

  1

Ethernet Software Features

• Management

  DHCP Server/Client, DNS, HTTP, IPv4, LLDP, Proxy ARP, SMTP, SNMPv1/v2c/v3, Syslog, TCP/IP, Telnet, UDP, VLAN, Wireless Search Utility, MXview, MXconfig

• Security

  HTTPS/SSL, RADIUS, SSH

• Time Management

  SNTP Client

Firewall

• Filter

  ICMP, MAC address, IP protocol, Port-based

Serial Interface

• Console Port

  RS-232, 8-pin RJ45

LED Interface

• LED Indicators

  PWR, FAULT, STATE, SIGNAL, WLAN, LAN

Input/Output Interface

• Buttons

  Reset button

Physical Characteristics

• Housing

  Metal

• IP Rating

  IP30

• Dimensions

  58 x 115 x 70 mm (2.29 x 4.53 x 2.76 in)

• Weight

  307 g (0.68 lb)

• Installation

  DIN-rail mounting, Wall mounting (with optional kit)

Power Parameters

• Input Current

  0.56 A @ 12 VDC, 0.14 A @ 48 VDC

• Input Voltage

  12 to 48 VDC

• Power Connector

  1 removable 4-contact terminal block(s)

• Power Consumption

  6.96 W (max.)

• Reverse Polarity Protection

  Supported

Environmental Limits

• Operating Temperature

  Standard Models: 0 to 60°C (32 to 140°F)
  Wide Temp. Models: -40 to 75°C (-40 to 167°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity

  5 to 95% (non-condensing)

Standards and Certifications

• EMC

  EN 55032/24

• EMI

  CISPR 32, FCC Part 15B Class B

• EMS

  IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
  IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF

• Radio

  EN 300 328, EN 301 489-1/17, EN 301 893, FCC ID SLE-WAPN008, ANATEL, MIC, NCC, RCM, SRRC, WPC, KC

• Safety

  EN 60950-1, UL 60950-1

• Vibration

  IEC 60068-2-6

MTBF

• Time

  749,476 hrs

• Standards

  Telcordia SR332
