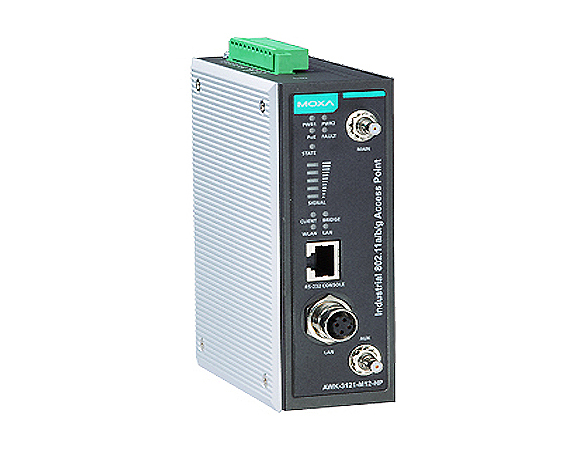

AWK-3121-M12-EU - *Discontinue* - IEEE802.11a/b/g Wireless AP/Bridge/Client, M12 connector, QMA connector, EU band
by MOXA
|
|
|
|
- IEEE 802.11a/b/g compliant
- QoS (WMM) and VLAN for efficient network traffic
- Supports long-distance data transfer and client-based Turbo Roaming
- Maximum security with WEP/WPA/WPA2/802.11X and powerful filters
- -40 to 75°C operating temperature range (T models)
|
|
|
Introduction
The AWK-3121 AP/bridge/client is ideal for industrial hard to wire applications, keeping wireless costs under control, and integrating with existing mobile equipment. The AWK-3121 is compliant with the industrial standards and approvals, covering operating temperature, power input voltage, surge, ESD and vibration. Installation is easy, with either DIN-Rail mounting or distribution boxes, and the DIN-Rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3121 a convenient yet reliable solution for any industrial wireless application.
Advanced Security
- 64-bit and 128-bit WEP (Wired Equivalent Privacy)
- Enable/disable SSID broadcasts
- WPA/WPA2 (Wi-Fi Protected Access) and 802.11i support
- IEEE802.1X/RADIUS support
- Powerful filters for access control
Specifications for Industrial-grade Applications
- Redundant DC power inputs
- Long-distance data transmission over 10 km
- Integrated DI/DO for on-site monitoring and warnings
- Signal strength LEDs for easy deployment and antenna alignment
| • WLAN Interface |
| Standards |
IEEE 802.11a/b/g for Wireless LAN
IEEE 802.11i for Wireless Security
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseTX
IEEE 802.3af for Power-over-Ethernet
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP |
| Spread Spectrum and Modulation (typical) |
• DSSS with DBPSK, DQPSK, CCK
• OFDM with BPSK, QPSK, 16QAM, 64QAM
• 802.11b: CCK @ 11/5.5 Mbps, DQPSK @ 2 Mbps,
DBPSK @ 11 Mbps
• 802.11a/g: 64QAM @ 54/48 Mbps, 16QAM @ 36/24 Mbps,
QPSK @ 18/12 Mbps, BPSK @ 9/6 Mbps |
| Operating Channels (central frequency) |
US:
2.412 to 2.462 GHz (11 channels)
5.18 to 5.24 GHz (4 channels)
EU:
2.412 to 2.472 GHz (13 channels)
5.18 to 5.24 GHz (4 channels)
JP:
2.412 to 2.472 GHz (13 channels, OFDM)
2.412 to 2.484 GHz (14 channels, DSSS)
5.18 to 5.24 GHz (4 channels for W52) |
| Security |
• SSID broadcast enable/disable
• Firewall for MAC/IP/Protocol/Port-based filtering
• 64-bit and 128-bit WEP encryption, WPA /WPA2-Personal and Enterprise (IEEE 802.1X/RADIUS, TKIP and AES) |
| Transmission Rates |
802.11b: 1, 2, 5.5, 11 Mbps
802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| TX Transmit Power |
802.11b:
Typ. 23±1.5 dBm @ 1 to 11 Mbps
802.11g:
Typ. 20±1.5 dBm @ 6 to 24 Mbps, Typ. 19±1.5 dBm @ 36 Mbps, Typ. 18±1.5 dBm @ 48 Mbps, Typ. 17±1.5 dBm @ 54 Mbps
802.11a:
Typ. 18±1.5 dBm @ 6 to 24 Mbps, Typ. 16±1.5 dBm @ 36 to 48 Mbps, Typ. 15±1.5 dBm @ 54 Mbps |
| RX Sensitivity |
802.11b:
-97 dBm @ 1 Mbps, -94 dBm @ 2 Mbps, -92 dBm @ 5.5 Mbps, -90 dBm @ 11 Mbps
802.11g:
-93 dBm @ 6 Mbps, -91 dBm @ 9 Mbps, -90 dBm @ 12 Mbps, -88 dBm @ 18 Mbps, -84 dBm @ 24 Mbps, -80 dBm @ 36 Mbps, -76 dBm @ 48 Mbps, -74 dBm @ 54 Mbps
802.11a:
-90 dBm @ 6 Mbps, -89 dBm @ 9 Mbps, -89 dBm @ 12 Mbps, -85 dBm @ 18 Mbps, -83 dBm @ 24 Mbps, -79 dBm @ 36 Mbps, -75 dBm @ 48 Mbps, -74 dBm @ 54 Mbps |
| • Protocol Support |
| General Protocols |
Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP |
| • Interface |
| Default Antennas |
2 dual-band omni-directional antennas, 2 dBi, RP-SMA (male) |
| Connector for External Antennas |
RP-SMA (female) |
| RJ45 Ports |
1, 10/100BaseT(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Console Port |
RS-232 (RJ45-type) |
| LED Indicators |
PWR1, PWR2, PoE, FAULT, STATE, signal strength, CLIENT MODE, BRIDGE MODE, WLAN |
| Alarm Contact |
1 relay output with current carrying capacity of 1 A @ 24 VDC |
| Digital Inputs |
2 electrically isolated inputs
• +13 to +30 V for state “1”
• +3 to -30 V for state “0”
• Max. input current: 8 mA |
| • Physical Characteristics |
| Housing |
Metal, providing IP30 protection |
| Weight |
850 g |
| Dimensions |
54 x 135 x 105 mm (2.1 x 5.3 x 4.1 in) |
| Installation |
DIN rail mounting, wall mounting (with optional kit) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -25 to 60°C (-13 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5% to 95% (non-condensing) |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC, redundant dual DC power inputs or 48 VDC Power-over-Ethernet (IEEE 802.3af compliant) |
| Connector |
10-pin removable terminal block |
| Power Consumption |
12 to 48 VDC, 0.121 to 0.494 A |
| Reverse Polarity Protection |
Present |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| Hazardous Location |
UL/cUL Class I Division 2, ATEX Zone 2 |
| EMC |
EN 301 489-1/17; FCC Part 15, Subpart B; EN 55022/55024 |
| Radio |
EN 300 328, EN 301 893, DSPR (Japan), FCC ID SLE-WAPA003 |
| Note |
Please check Moxa’s website for the most up-to-date certification status. |
| • Reliability |
| MTBF (mean time between failures) |
392,209 hrs |
|
|
