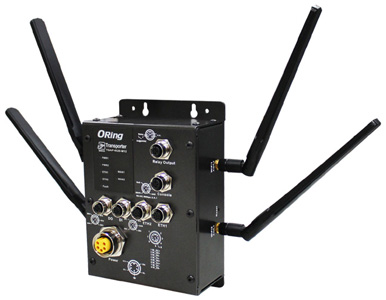

TGAP-6620-M12 - EN50155 Rugged 2x10/100/1000Base-T(X), M12 connector (one port PSE) to dual RF 802.11a/b/g/n wireless access poi by ORing Industrial Networking
|
|
|
-
High Speed Air Connectivity: WLAN interface support up to 300 Mbps link speed
- Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
- Dual Gigabit Ethernet ports support switch mode in M12 connector (A-coding)
- Support X-Roaming < 60 ms
- Support wireless load balance
- Support Multiple-SSID to 4 SSID
- Support external SMA antenna installation
- Support dual AP/Dual Client /Bridge /AP-Client Mode
- Support MAC Filter
- Wireless connecting status monitoring
- 1KV isolation for PoE P.D. port for TGAP-6620+-M12 • Secured Management by HTTPS
- Event Warning by Syslog, Email, SNMP Trap, and Relay output
- Rigid IP-40 housing design
- Wall-mount enabled
|
|
|
TGAP-6620-M12 is a reliable WLAN Access Point with 2 Ethernet Gigabit ports and dual RF in IEEE 802.11 a/b/g/n wireless modules. It can be configured to operate in Dual AP/Dual Client /Bridge /AP-Client Mode. In combination with its IP-40 design and the superb management functionality, TGAP-6620-M12 provides a dust-tight connection and reverse SMA-type connectors, that can install any reverse SMA-type antennas to extend communication distance. It is specifically designed for the toughest industrial environments. You are able to configure TGAP-6620-M12 by WEB interface via LAN port or WLAN interface. TGAP-6620-M12 can be easily adopted in almost all kinds of applications and provides the most rugged solutions for managing your network in outdoor. In addition, TGAP-6620+-M12 also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. Therefore, TGAP-6620-M12 is one of the best communication solutions for wireless applications.
|
|
Physical Ports |
|
100/1000Base-T(X) Ports in M12 Auto MDI/MDIX (8-pin A-coding) |
2 |
|
DIDO port in M12 (A-Coding) |
2(DI x 4 and DO x 4)
Dry Contact:
On: short to GND, off: open
Wet Contact(DI to COM/GND):
On: 0 to 3VDC, off: 10 to 30VDC |
RS-232 Console port in M12 (5-pin A-coding) |
115200, 8 ,N ,1 |
Antenna Connector |
4 |
Relay port in M12 (5-pin A-coding) |
1A@24VDC |
WLAN interface |
|
Operating Mode |
AP/Bridge/Repeater/AP-Client |
Antenna and connector |
4 x Reverse SMA Female |
Radio Frequency Type |
DSSS |
Modulation |
IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11a/g: OFDM with BPSK, QPSK, 16-QAM, 64-QAM
IEEE802.11n: OFDM with BPSK, QPSK, 16-QAM, 64-QAM |
Frequency Band |
America/FCC: 2.412~2.462 GHz (11 channels)
5.180~5.240 GHz & 5.745~5.825 GHz (9 channels)
Europe CE/ETSI: 2.412~2.472 Ghz (13 channels)
5.180~5.240 GHz (4 channels)
|
Transmission Rate |
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE801.11n: up to 300Mbps |
Transmit Power |
802.11a: 12dBm ± 1.5dBm@54Mbps
802.11b: 17dBm ± 1.5dBm@11Mbps
802.11g: 16dBm ± 1.5dBm@54Mbps
802.11gn HT20: 15dBm ± 1.5dBm @MCS7
802.11gn HT40: 14dBm ± 1.5dBm @MCS7
802.11an HT20: 12dBm ± 1.5dBm @MCS7
802.11an HT40: 11dBm ± 1.5dBm @MCS7 |
Receiver Sensitivity |
802.11a : -76dBm ± 2dBm@54Mbps
802.11b : -85dBm ± 2dBm@11Mbps
802.11g : -76dBm ± 2dBm@54Mbps
802.11gn HT20:-75dBm ± 2dBm@MCS7
802.11gn HT40:-72dBm ± 2dBm@MCS7
802.11an HT20:-74dBm ± 2dBm@MCS7
802.11an HT40:-71dBm ± 2dBm@MCS7 |
Encryption Security |
WEP: (64-bit ,128-bit key supported)
WPA/WPA2 :802.11i(WEP and AES encryption)
WPAPSK (256-bit key pre-shared key supported)
802.1X Authentication supported
TKIP encryption |
Wireless Security |
SSID broadcast disable and enable |
Protocol Support |
|
Protocol |
ARP,BOOTP, DHCP, DNS, HTTP, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP, RSTP |
LED Indicators |
|
Power Indicator |
2 x LEDs, Green for Power on |
10/100/1000TX RJ45 Port Indicator |
2 x LEDs, Green for port Link/Act |
WLAN LED |
2 x LEDs, Green for WLAN Link/Act |
Fault |
1 x LED, Red for Ethernet link down or power down indicator |
Fault contact |
|
Relay |
Relay output to carry capacity of 1A at 24VDC(5-pin M12 A-coding) |
Power |
|
Redundant Input Power |
Dual Power Inputs. 12~48 VDC |
Power Consumption (Typ.) |
11 Watts |
|
Physical Characteristic |
|
Enclosure |
IP-40 |
Dimension (W x D x H) |
125.6(W) x 65(D) x 196.1(H) mm (4.94 x 2.55 x 7.72 inch.) |
Weight (g) |
980 g |
|
Environmental |
|
Storage Temperature |
-40 to 85°C (-40 to 185°F) |
Operating Temperature |
-25 to 70°C (-13 to 158°F) |
Operating Humidity |
5% to 95% Non-condensing |
Regulatory approvals |
|
EMI |
FCC Part 15, CISPR (EN55022) class A, EN50155 (EN50121-3-2, EN55011, EN50121-4) |
EMS |
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11 |
Shock |
IEC60068-2-27, EN61373 |
Free Fall |
IEC60068-2-31 |
Vibration |
IEC60068-2-6, EN61373 |
Safety |
EN60950-1 |
|
|
