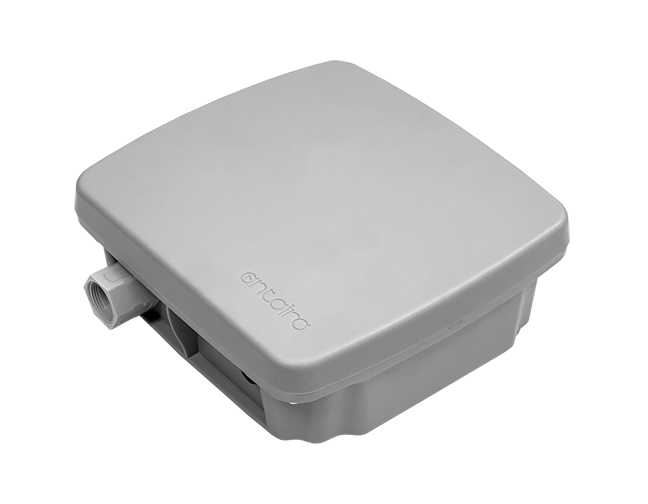

Antaira AIROLINX-GOMAX-BASE-IP67-T

Antaira AIROLINX-GOMAX-BASE-IP67-T - BASE Unit for Airolinx Go MAX Kit (AIROLINX-GOMAX-KIT-IP67-T) Use to create PtMP Networks o
by ANTAIRA

Base Unit for Airolinx Go MAX Kit (AIROLINX-GOMAX-KIT-IP67-T)
Use to Create PtMP Networks Out of PtP Kits
USA / Canada Model
Transparent Layer 2 Bridge Operation
(No Management IP Required to Pass Traffic)
Integrated 5GHz Dual-Chain Radio (2x2) with Wireless Speed Up to 2400Mbps
Airolinx Go Studio Software for Discovery, First-Run Security, RF Optimization, Alignment, and Link Test Reporting
Integrated 19dBi Panel Antenna Up to 6+ Miles
Active 802.3at PoE Input
Rugged IP67 Enclosure for Permanent Outdoor Installation
Video-Grade Range 1.5~4 miles (2.4~6.5km) Line-of-Sight for Consistent Higher Throughput *depends on country regulations*
Longer Distance Will Result in Lower Throughput
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Add optional AIROLINX-GOMAX-BASE-IP67-T High-Speed Base Unit to Create Point-to-Multipoint (PtMP) Networks
Add additional AIROLINX-GOMAX-KIT-IP67-T Preconfigured Kits to Expand Wireless Network

Description
Specification
Datasheet

Antaira AIROLINX-GOMAX-BASE-IP67-T

Airolinx Go Studio is a situation-driven commissioning application for Airolinx Go wireless bridge kits. Designed for field technicians and network integrators, the software runs on Windows PCs and tablets, guiding users through every step of installation - from initial IP assignment and RF optimization to antenna alignment, link validation, and deployment finalization.

Specification

Industrial IP67 Single Band 5GHz 2400Mbps Base unit upgrade to convert Airolinx Go MAX Point-to-Point Bridge into Point-to-Multipoint kit External 8/7 dBi Omni-directional antenna, Active PoE (802.3at) powered; EOT: -40°C to +75°C
