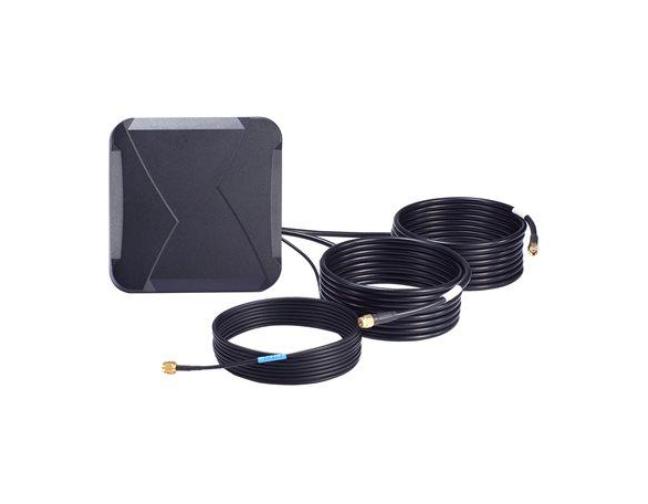

MAT-5G-PA-SM-3-06-3m - 6 dBi MIMO panel antenna with 3 SMA (male) connectors for cellular and GNSS applications, 3 m cable by MOXA
|
|
|
MAT-5G-PA-SM-3-06-3m_SUMMARY.html
- Supports all global LTE bands
- 3-in-1 LTE+GNSS combination design
- High-gain antenna to enhance performance
- Flexible installation
- 3-meter cable
- SMA connector (male) supported
|
|
|
MAT-5G-PA-SM-3-06-3m_DESCRIPTION.html
The MAT-5G-PA-SM-3-06-3m Series is a 3-in-1 panel antenna
suitable for GSM, UMTS, LTE, 5G NR bands, GPS, GLONASS, and BDS systems.
The antenna provides a gain of 6 dBi and is designed to operate in
temperatures ranging from -40 to 85C.
MAT-5G-PA-SM-3-06-3m.html
Antenna Characteristics -
Frequency - Cellular: 617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz
GNSS: 1561.00, 1575.42, 1602.00 MHz -
Antenna Type -
Typical Antenna Gain - Cellular:
2.64 dBi @ 617 to 698 MHz (5G NR n71) 5.23 dBi @ 698 to 824 MHz (LTE 700) 4.73 dBi @ 824 to 960 MHz (GSM 850/900) 6.66 dBi @ 1427 to 1510 MHz (5G NR n74,75,76) 6.14 dBi @ 1710 to 1880 MHz (DCS) 5.92 dBi @ 1850 to 1990 MHz (PCS) 5.92 dBi @ 1920 to 2170 MHz (UMTS1) 5.54 dBi @ 2300 to 2690 MHz (LTE 2600)
GNSS: 1.21 dBi @ 1561.00 MHz (BDS) 1.29 dBi @ 1575.42 MHz (GPS) 1.44 dBi @ 1602.00 MHz (GLONASS)
With low noise amplifier: 30 dB -
Connector -
Impedance -
Polarization Physical Characteristics -
Dimensions - 135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)
-
Radome Material -
Radome Color -
Installation -
Cable -
Cable Length -
IP Rating Environmental Limits -
Operating Temperature -
Storage Temperature (package included) -
Ambient Relative Humidity - 5 to 95% (30C, non-condensing)
|
|
