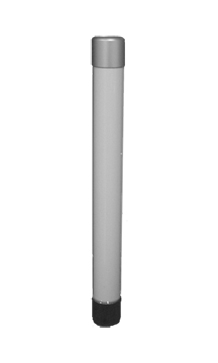

ANT-WDB-ANM-0407 - 2.4/5GHz, Dual-band omni-directional antenna, 4/7 dBi, N-type (male)
by MOXA
|
|
|
|
• High-gain antenna to enhance performance
• Waterproof N-type connector
• Lightweight
½“, sans-serif; font-size:12px; color:rgb(0, 0, 0); font-style:normal; font-weight:normal; ">• Compact form factor
• Housing provides IP65 protection
• -40 to 80˚C operating temperature range
|
|
|
2.4/5GHz, Dual-band omni-directional antenna, 4/7 dBi, N-type (male)
| • Antenna Characteristics |
| Frequency |
2.4 to 2.5 or 5.1 to 5.9 GHz |
| Antenna Type |
Omni-directional, Dipole |
| Typical Antenna Gain |
4/7 dBi |
| Connector |
N-type (male) |
| Impedance |
50±5 ohms |
| Polarization |
Linear |
| HPBW/horizontal |
360° |
| HPBW/vertical |
10/8° |
| V.S.W.R. |
1:1.5 max. |
| Power Handling |
10 W max. |
| • Physical Characteristics |
| Weight |
115 g |
| Dimensions |
Diameter: 23 mm Length: 220 mm |
| IP Rating |
IP65 |
| Radome Color |
White |
| Radome Material |
Glass fiber |
| • Environmental Limits |
| Operating Temperature |
-40 to 80°C (-40 to 176°F) |
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
