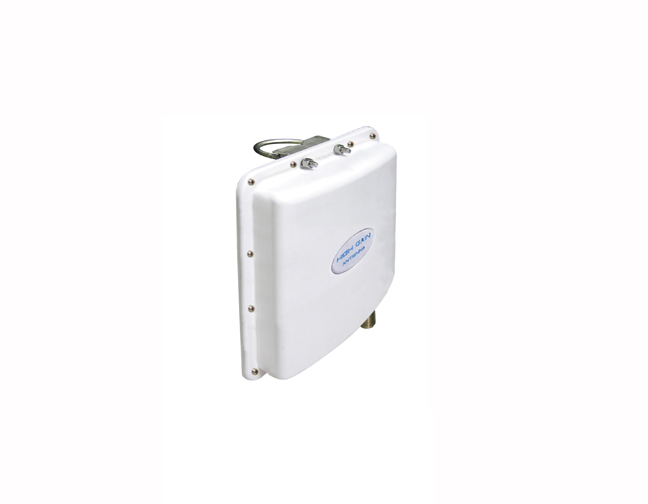

ANT-WDB-PNF-1011 - 10 dBi at 2.4 GHz and 11 dBi at 5 GHz, N-type (female), dual-band directional antenna
by MOXA

The ANT-WDB-PNF-1011 is adual-band high-gain directional panel antenna with a waterproof N-type female connector. The antenna provides a gain of 10 dBi at 2.4 GHz and 11 dBi at 5 GHz. The IP65-rated housing, pole-mounting support, and wide operating temperature range of -40 to 85°C make it suitable for outdoor use.

Antenna Characteristics

• Frequency

  2.4 to 2.4835, 5.15 to 5.85 GHz

• Antenna Type

  Directional, Panel

• Typical Antenna Gain

  10/11 dBi

• Connector

  N-type (female)

• Impedance

  50 ohms

• HPBW/Horizontal

  40°

• HPBW/Vertical

  30°

• V.S.W.R.

  1:3.0 max.

• Power Handling

  10 W (max.)

• Polarization

  Vertical

Physical Characteristics

• IP Rating

  IP65

• Dimensions

  260 x 260 x 44 mm (10.27 x 10.27 x 1.73 in)

• Weight

  767 g (1.69 lb)

• Radome Color

  White

• Radome Material

  PC and ABS

• Installation

  Pole mount

Environmental Limits

• Operating Temperature

  -40 to 85°C (-40 to 185°F)

• Storage Temperature (package included)

  -40 to 85°C (-40 to 185°F)
