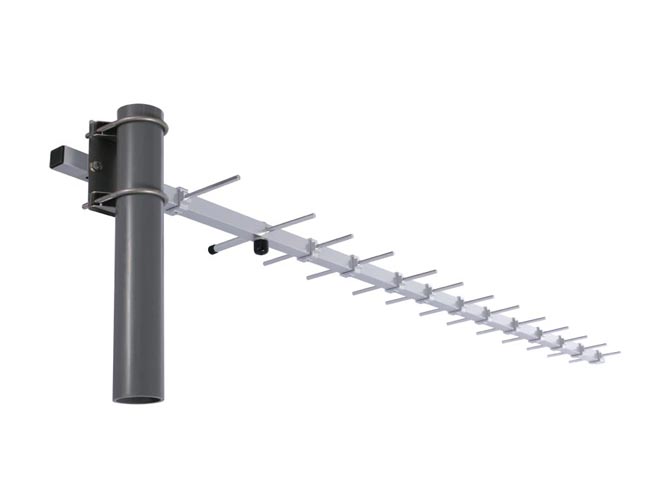

Moxa ANT-WSB0.9-YNF-12 - 900 MHz, Yagi directional antenna, 12 dBi, N-type (female)
by MOXA
|
|
|
|
- Support for 900 MHz frequency
- High-gain antenna to enhance performance
- Waterproof N-type connector
- Pole-mounting support
- Housing provides IP65 protection
- -40 to 80°C operating temperature range
|
|
|
900 MHz, Yagi directional antenna, 12 dBi, N-type (female)
| Antenna Characteristics |
| Frequency |
902 to 928 MHz |
| Antenna Type |
Directional Yagi type |
| Typical Antenna Gain |
12 dBi |
| Connector |
N-type (female) |
| Impedance |
50±5 ohms |
| Polarization |
Linear |
| HPBW/horizontal |
25° |
| HPBW/vertical |
15° |
| V.S.W.R. |
1:1.5 max. |
| Power Handling |
30 W max. |
| • Physical Characteristics |
| Weight |
570 g |
| Length |
1,400 mm |
| IP Rating |
IP65 |
| Radome Color |
Aluminum |
| Radome Material |
N/A |
| • Environmental Limits |
| Operating Temperature |
-40 to 80°C (-40 to 176°F) |
| Storage Temperature |
-40 to 80°C (-40 to 176°F) |
| Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
