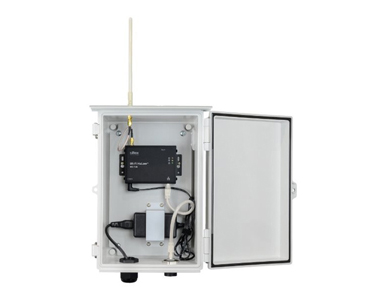

Silex AP-100AH-OUT-KIT - AP-100AH Outdoor Kit including AP-100AH HaLow radio, enclosure, power supply, fully assembled.
by Silex
|
|
|
|
The AP-100AH-OUT-KIT offers long-range, multi-megabyte connectivity for any IoT device, ensuring both security and reliability. It allows any Ethernet device to connect with other 802.11ah devices over an extended Wi-Fi HaLow network, providing the flexibility to place it anywhere within your facility. The AP-100AH is your all-in-one solution to build out your 802.11ah (HaLow) network. Now with WPA3-Enterprise support, it brings Wi-Fi HaLow technology to enterprises needing 802.1X raidus authentication.
With this bundle, everything is provided to make the AP-100AH outdoor rated.
|
|
|
AP-100AH-OUT-KIT outdoor enclosure kit for the AP-100AH or BR-100AH includes weatherproof case, networking and power cables, cable glands, high-temperature power supply unit, and an outdoor antenna
All-inclusive outdoor kit
This kit includes everything needed to turn the AP-100AH or BR-100AH into an outdoor unit including:
- AP-100AH-US
- IP65 outdoor enclosure
- Internal networking and power cables
- Waterproof cable glands
- High-temperature rated power supply
- Weatherproof antenna
AP-100AH:
| Model number |
AP-100AH |
| Wired LAN |
Ethernet:
RJ-45 Connector x 1 10Base-T / 100Base-TX |
| Wireless Standard |
802.11ah (1x1) |
| Security |
Open, Enhanced Open, WPA3-Personal, WPA3-Enterprise (128-bit mode)
Encryption: AES-CCMP |
| Channels |
1 MHz, 2 MHz & 4 MHz |
Storage Temperature
Humidity |
-20 ~ + 80°C
20 ~ 90% RH |
Operating Temperature
Humidity |
0 ~ + 40°C
20% ~ 90% RH (non-condensing) |
| Range |
3km |
| Max # of Clients |
675 stations simultaneously |
| Power |
5.0V ± 5% DC Jack (5.5mm x 2.1mm) |
| Regulatory Compliance |
FCC, ISED |
| Supported Software |
AMC Manager® |
| Dimensions |
126mm x 75mm x 24mm |
| Warranty |
5 years |
Outdoor Enclosure:
Model name |
100AH-OCASE |
Water/Dust proof |
IP65 *1 |
Dimensions |
78.7 in x 118 in x 51.2 in (200mm x 300mm x 130mm) without antenna |
Weight |
4 lb (1.8 kg) |
Storage environment *2 |
Temperature: -20C to 60C
Humidity: 20% - 85% (without condensation) |
Contents |
IP 65 rated enclosure, waterproof antenna, AC adapter fixture, antenna cable (internal), fixtures, outdoor roof, setup guide |
Compatible devices |
AP-100AH-US
BR-100AH-US |
Standards |
RoHS |
Compatible device standards |
FCC Part15 Subpart B Class A |
Compatible AC adapter
(sold separately) |
100AH-5V-OP-ACPR-US |
|
|
|
|
