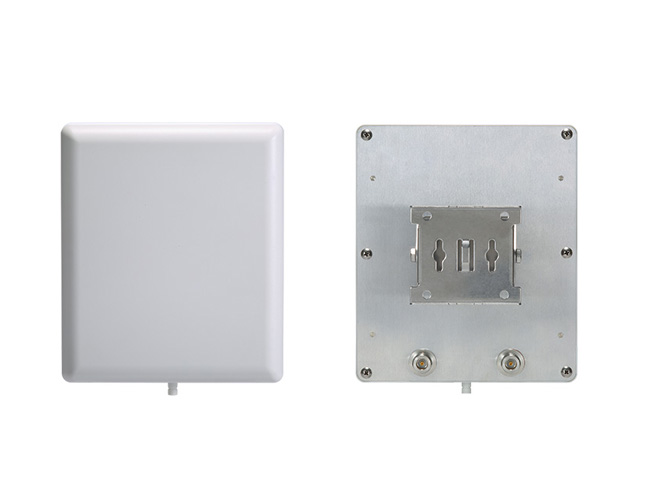

MAT-WDB-PA-NF-2-0708 - MIMO 2x2, 2.4/5 GHz, dual-band panel antenna, 7/8 dBi, N-type (female)
by MOXA
|
|
|
|
- Lightweight
- Compact form factor
- Pole-mounting support
- -40 to 75°C operating temperature range
|
|
|
MIMO 2x2, 2.4/5 GHz, dual-band panel antenna, 7/8 dBi, N-type (female)
| • Antenna Characteristics |
| Frequency |
2.4 to 2.5 GHz, 4.9 to 5.9 GHz |
| Antenna Type |
Directional panel-type |
| Typical Antenna Gain |
7/8 dBi |
| Connector |
N-type (female) |
| Impedance |
50 ohms |
| Polarization |
Vertical |
| HPBW/horizontal |
90° |
| HPBW/vertical |
50° |
| V.S.W.R. |
2 max. |
| Power Handling |
2 W max. |
| • Physical Characteristics |
| Weight |
935 g |
| Dimensions |
206 x 177 x 45 mm |
| Radome Color |
White |
| Radome Material |
ABS |
| • Environmental Limits |
| Operating Temperature |
-40 to 75°F (-40 to 167°F) |
| Storage Temperature |
-40 to 75°F (-40 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (30°C, non-condensing) |
|
|
