n and 3G VPN Router
by ORing Industrial Networking

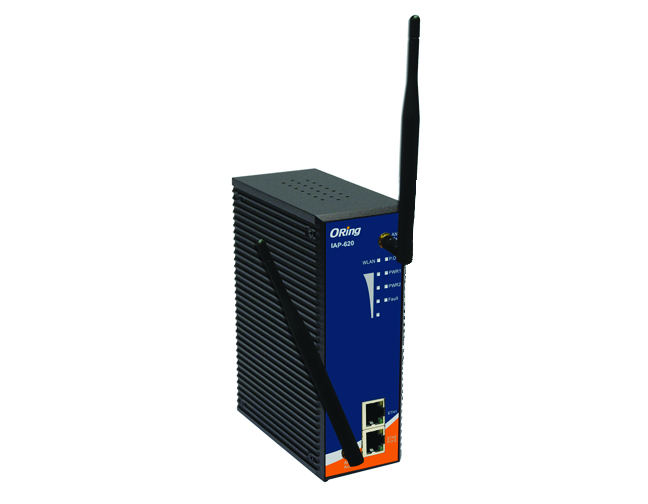

IAR-620

WLAN interface support up to 300Mbps link speed
Provide HNAT enhance LAN to WAN routing performance
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/ WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Secured Management by HTTPs
Support STP(802.1D) for wireless redundancy
Various kind of WAN Connection Type supported: Dynamic/Static IP, PPPoE,Modem/Dial Up
IP table to prevent access from unauthorized IP address
Support VPN for secured network connection (Open VPN , PPTP VPN)
Support NAT Setting (Virtual Server , Port Trigger , DMZ , UPnP)
Support DHCP forwarder through PPTP function
3G Modem signal information display (un-connecting status)
Wireless connecting status monitoring
USB interface support 3.5G HSDPA USB Modem dial up
Event Warning by Syslog, Email, SNMP Trap, Relay and Beeper
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Description
Specification
Datasheet

IAR-620 / IAR-620+ is a reliable IEEE 802.11 a/b/g/n WLAN VPN router with 2 ports 10/100Base-T(X) router where ETH1 for LAN and ETH2 for WAN. It supports 802.1X and MAC filter for security control. It could be configured to operate in 3 modes of routing function: Dynamic/Static IP route, PPPoE authentication, and Modem (56K/GPRS/3G/3.5G Modem) dial up. In the mode of Modem dial up, it support both traditional 56K modem and GPRS/3G/3.5G Modem with USB interface. Users can set up WLAN environment to fulfill demands of various applications rapidly by dialing up cellular modems. In addition, IAR-620+ also provides P.D. feature on ETH2 which is fully compliant with IEEE802.3af PoE P.D. specification. This feature extends the layout up to 100 meters. Therefore, IAR-620 / IAR-620+ is one of the best solution for applications of wireless communication.

Physical Ports
10/100Base-T(X) Ports in RJ45 Auto MDI/MDIX	2
USB Host port	1x USB 2.0 Host port
WLAN interface
WAN Connection Type	Static/Dynamic IP / PPPoE / Modem (56K/GPRSG/3G/3.5G Modem) dial up
Antenna and connector	2dBi ( b/g mode) / 3dBi ( a mode ) antenna on reverse SMA connector
Radio Frequency Type	DSSS
Modulation	IEEE802.11a/n : OFDM with BPSK, QPSK, 16QAM, 64QAM IEEE802.11b : CCK, DQPSK, DBPSK IEEE802.11g/n : OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency Band	America / FCC: 2.412~2.462 GHz (11 channels ) 5.180~5.240 GHz & 5.745~5.825 GHz ( 9 channels ) Europe CE / ETSI: 2.412~2.472 GHz ( 13 channels ) 5.180~5.240 GHz ( 4 channels ) Japan(JP): 2.412~2.484 GHz ( 13 channels ) 5.180~5.240 GHz ( 4 channels ) Canada(CA): 2.412~2.462 GHz ( 11 channels ) 5.180~5.825 GHz ( 21 channels )
Transmission Rate	IEEE802.11b : 1/ 2/ 5.5/ 11 Mbps IEEE802.11a/g : 6/ 9/ 12/ 18/ 24/ 36/ 48/ 54 Mbps IEEE802.11n : up to 300Mbps
Transmit Power	802.11a: 13dBm ±1.5dBm 802.11b: 16dBm ±1.5dBm 802.11g: 14dBm ±1.5dBm 802.11n(2.4G@20MHz): 13dBm ±1.5dBm 802.11n(2.4G@40MHz): 12dBm ±1.5dBm 802.11n(5G@20MHz): 12dBm ±1.5dBm 802.11n(5G@40MHz): 12dBm ±1.5dBm
Receiver Sensitivity	802.11a: -68dBm ±2dBm@54Mbps 802.11b: -82dBm ±2dBm@11Mbps 802.11g: -68dBm ±2dBm@54Mbps 802.11n(2.4G@20MHz,MCS15): -64dBm ±2dBm 802.11n(2.4G@40MHz,MCS15): -60dBm ±2dBm 802.11n(5G@20MHz,MCS15): -64dBm ±2dBm 802.11n(5G@40MHz,MCS15): -60dBm ±2dBm
Encryption Security	WEP : (64-bit ,128-bit key supported) WPA : WPA2 : 802.11i(WEP and AES encryption) WPAPSK (256-bit key pre-shared key supported) 802.1X Authentication supported TKIP encryption
Wireless Security	SSID broadcast disable
Modem Support
List	USB modems and ISDN adapters which support the Communication Device Class Abstract Control Model interface List of tested device : Hummingbird huc56s (Conexant) Huawei E220/E230 Simense HSDPA-180C Prolific 2303 + serial modem Quanta MUQ101 Sony Ericsson MD400/MD400g Sierra C885
LED Indicators
Power Indicator	PWR 1(2)(P.O.E.) / Ready : Red On : Power is on and booting up. Green On : Power is on and functioning Normally.
10/100TX RJ45 Port Indicator	Green for port Link/Act at 100Mbps. Amber for port Link/Act at 10Mbps.
WLAN LEDs	WLAN Link /ACT : Green : Link, Orange : Poor signal WLAN Strength : 1<25%, 2<50%, 3<75%, 4<100%
Fault	Red : Ethernet link down or power down
LED Indicators
Relay	Relay output to carry capacity of 1A at 24VDC
Power
Redundant Input Power	Dual DC inputs. 12-48VDC on 6-pin terminal block
Power Consumption (Typ.)	6 Watts
Overload Current Protection	Present
Reverse Polarity Protection	Present on terminal block
Physical Characteristic
Enclosure	IP-30
Dimensions (W x D x H)	52(W) x 106.1(D) x 144.3(H) mm (2.05x4.18x5.68 inch.)
Weight (g)	803 g	807 g
Environmental
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operating Temperature	-10 to 70°C (14 to 158°F)
Operating Humidity	5% to 95% Non-condensing
Regulatory Approvals
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock	IEC60068-2-27
Free Fall	IEC60068-2-32
Vibration	IEC60068-2-6
Safety	EN60950-1
Warranty	3 years
