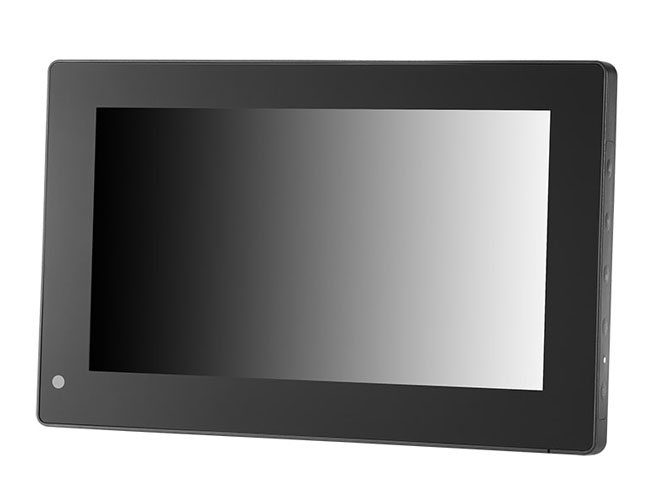

Xenarc 892GFC - 8" Front IP65 Sunlight Readable Capacitive Touchscreen LCD Monitor with HDMI and USB-C
by Xenarc Technologies

Xenarc 892GFC

The 892GFC is the first of its kind, vibration proof, USB-C and HDMI/USB display, built specifically for industrial, integrator, and in-vehicle use.  Anything thrown its way in tough and rugged environments, this display is built to deal with them.  The front panel of this sleek, 8”, 16:9 capacitive touch screen is IP65/NEMA4 rated for water and dust intrusion.  With a 1000 NIT rated brightness and a touch panel optically bonded to the LED screen, this monitor can be viewed in any outdoor application, even under direct sunlight.  With an industry leading operating temperature range of -35C ~ 85C, there is no situation the 892GFC wouldn’t be able to handle.

Vibration has always been an issue when it comes to industrial and in-vehicle use.  The 892GFC tackles this issue by incorporating a built in bracket that allows integration using either a 90 or 180 degree plug that will lock into place, securing all cables (HDMI, USB, USB-C) in place, resistant to any movement or vibration the display may encounter.  The capacitive touchscreen also provides further ruggedness and responsiveness than standard resistive touch panels.  It achieves this by using the capacitance of human skin to detect proximity or position of the input.  Proximity sensing allows the touch interaction to work even if protective glass or coating is used over the touch display.  The IP65 rating on the front panel of this 8 inch monitor provides protection against solid objects and liquids.  To further its ease of integration, this unit is panel mountable and has VESA standard mounting holes on the back that allow the display to be used with any VESA standard mount.  It also incorporates a USB-C input that can handle both the display and touchscreen interface, further simplifying any installation by reducing the number of interface cables.  The USB-C is also capable of Bi-Directional Power Delivery.  A computer supporting USB-C Power Delivery can power the monitor directly over the USB-C Cable and simplify your installation further.  If the monitor is connected to a DC power source, it could then provide power over USB-C to the connected device such as a Smart Phone.  The 892GFC truly has all of the bases covered for any industrial or vehicular application where vibration would be a concern for other display interfaces.

• Screen Size: Diagonal 8"  (16:9)
• Physical Resolution: 1280 (H)  x 720 (V) HD
• Supported Resolution: 640 x 480 ~ 1920 x 1080
• Dot Resolution: 3840 x 720 = 2,764,800 (dots)
• Brightness: 1000 cd/m²
• Contrast Ratio: 1000:1
• Viewing Angle: 170° Horizontal, 170° Vertical
• Response Time (Tr/Tf): 15/10ms (Typ.)
• Touch Screen Interface: USB port
• Operating Voltage Range: DC 9V ~ 36V
• Power Supply: DC 12V
• Power Consumption: ≤ 20W
• Operating Temperature: -31°F ~ 185°F (-35°C ~ 85°C)
• Storage Temperature: -40°F ~ 203°F (-40°C ~ 90°C)
• MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation
• Dimension (mm): 220.7W x 142.7H x 33D
• Weight (lb): 1.89
