Antaira LANOBOX-212-T - Pre-built NEMA 4X enclosure with LMP-1204G-SFP-bt-T; Mean Well UHP-350-55 power supply; DIN-Rail termina
by ANTAIRA
|
|
|
|
- Includes Managed PoE Ethernet Switch, Power Supply, and Surge Suppressor
- Supports 4*10/100/1000BASE-T IEEE 802.3bt Compliant (up to 100W/Port), 4*10/100/1000BASE-T IEEE 802.3af/at Compliant (up to 30W/Port), and 4*100/1000 SFP Slots
- Total PoE Power Budget 240W at 48~55VDC Power Input
- Power Supply Support Up to 350W
- Surge Protector Up to 20kA
- IP68-Rated Cabinet
- Wall or Pole Mount Installation
- Operating Temperature: -30 to 75°C (-22 to 167°F)
- 5-Year Warranty
|
|
|

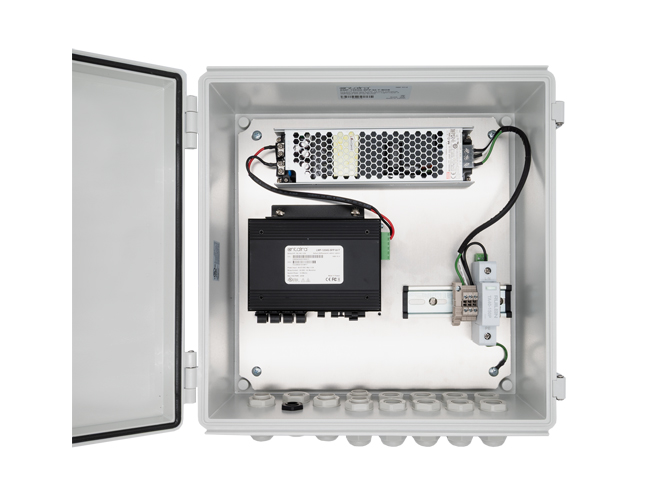

Antaira LANOBOX-212-T
Antaira Technologies' LANOBOX-212-T offers an all-in-one, secure, and protected cabinet enclosure for outdoor industrial networking. This integrated solution combines a power supply and a surge protector, making it a reliable and cost-effective choice for safeguarding industrial PoE/Ethernet devices in harsh outdoor environments. The LANOBOX-212-T is designed for convenience, accommodating most of Antaira's PoE/Ethernet equipment and supporting diverse applications, such as surveillance and other networking needs, to ensure optimal, long-term performance.
LANOBOX-212-T Specifications
Hardware Specifications
| Power Input |
100 ~ 240VAC |
| Power Output |
55VDC (3.6A) |
| Surge Protection |
20kA @ 8/20us |
| Housing |
Polycarbonate |
| IP Rating |
IP68 |
| Dimensions |
300 × 300 × 150mm |
| Weight |
3.64kg / 8.02lb (Unit)
3.65kg / 8.22lb (Shipping)
|
| Installation |
Wall Mount (Included)
Pole Mount (Sold Separately)
|
| Operating Temperature |
-30 to 75°C (-22 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Relative Humidity |
10% to 95% (non-condensing) |
| Warranty |
5 Years |
|
|
