MD-119-X1 - 19 display with 4:3 aspect ratio.LED backlighting. Multi-Power supply (AC/DC) with Tape Bonding.
by MOXA
|
|
|
|
• 19-inch screen, 5:4 aspect ratio, 1280 x 1024 resolution
• 350 cd/m2 backlight luminance eases eyestrain for comfortable viewing
• PIP/PBP give viewing options so that crews may arrange information to meet any need
• Independent DC and AC power connectors (24 VDC, 115 to 230 VAC) allow for installation flexibility
• Industrial-grade operating temperature: -15 to 55°C (5 to 131°F)
• Anti-vibration design compliant with IEC 60945 DNV 2.4, Class A / Class C
• Optically bonded models increase panel contrast and overall visibility under bright sunlight
• Color calibration to meet the ECDIS display standard (IEC 61174) is available by request
|
|
|

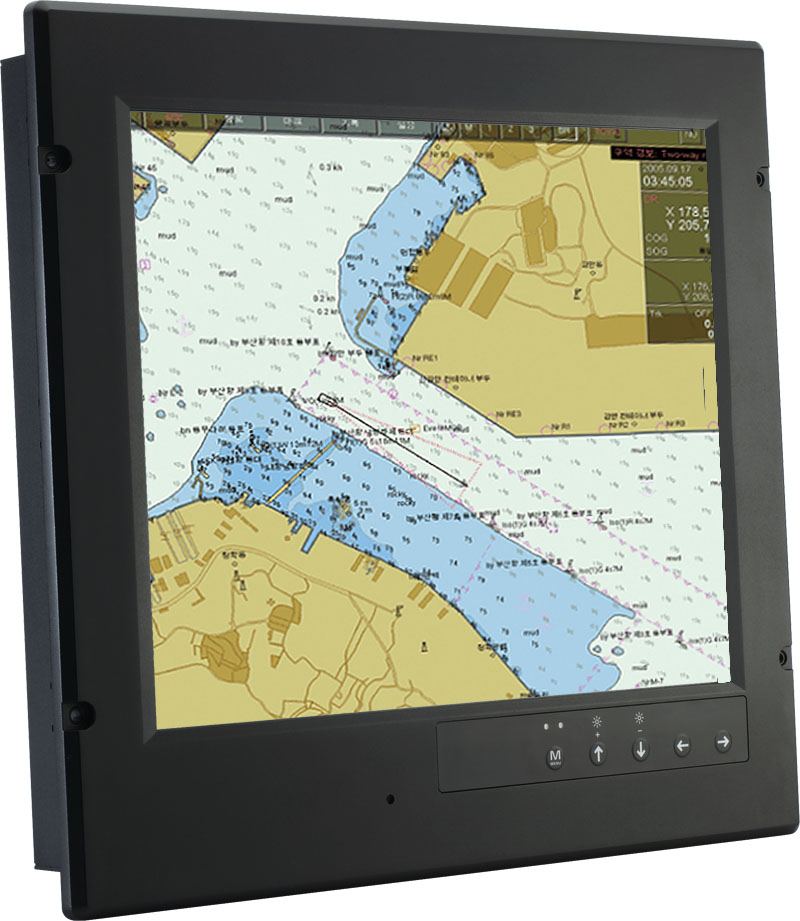

The MD-119 marine display is designed to fit the great demands of the marine industry. The 19-inch wide viewable image size with 5:4 aspect ratio and 1280 x 1024 pixel resolution make the displays ideal for a variety of marine applications. In addition, the full range dimming and optical bonding (optional) are well-suited for a variety of marine applications, and meet all required marine standards.
The PIP (picture-In-picture) and PBP (picture-by-picture) functions are available to offer multiple configurations for screen displays. Users can also use either AC or DC power inputs, simplifying the installation of the displays at field sites.
The MD-119 displays are compliant with a variety of industrial marine standards, including IEC 60945, DNV, and IACS-E10.
| • Display |
| Panel Size |
19” viewable image size |
| Panel Type |
MVA |
| Aspect Ratio |
5:4 |
| Pixels |
1280 x 1024 (WSXGA+) |
| Pixel Pitch (RGB) |
0.294 (H) x 0.294 (V) mm |
| Response Time |
5 ms (gray to gray) |
| Contrast Ratio |
1000:1 |
| Light Intensity |
350 cd/m2 |
| Viewing Angles |
85° x 80° (right-left/up-down) |
| Active Display Area |
376.32 (H) x 301.06 (V) mm / 14.81 (H) x 11.85 (V) in |
| Max Colors |
8-bit color / 16.7M |
| Display Interface |
VGA x 1, DVI-I x 2, BNC composite x 3 |
| Resolution |
• VGA: 640 x 480
• SVGA: 800 x 600
• XGA: 1024 x 768
• SXGA: 1280 x 1024 |
| • Serial Interface |
| Serial Standards |
1 software-selectable RS-232/422/485 port, male DB9 |
| • Serial Signals |
| RS-232 |
TxD, RxD, DTR, DSR, CTS, DCD, GND |
| RS-422 |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-4w |
TxD+, TxD-, RxD+, RxD-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Front Panel |
| Panel Control Buttons |
1 Power, 5 OSD control |
| LEDs |
Status, Power |
| • Physical Characteristics |
| Housing |
Aluminum sheet metal |
| Weight |
9.7 kg |
| Dimensions |
82 x 483 x 444 mm (3.23 x 19.02 x 17.48 in) |
| Mounting |
Console mounting |
| • Environmental Limits |
| Operating Temperature |
-15 to 55°C (5 to 131°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Anti-Vibration |
• IEC 60945
• DNV 2.4, Class A/Class C |
| • Power Requirements |
| Input Voltage |
• 24 VDC (with tolerance from 18 to 36 VDC, 2-pin terminal block)
• 110 to 230 VAC, 50/60 Hz |
| Power Consumption |
75 W (standard) to 90 W (full-loading)
• 6.21 A @ 18 VDC
• 4.55 A @ 24 VDC
• 2.95 A @ 36 VDC |
| • Standards and Certifications |
| Safety |
UL 60950-1, CCC (Pending) |
| EMC |
EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A |
| Marine |
IEC 60945 4th. (Pending), DNV (Pending), IACS-E10 (Pending), IEC 61174 |
| Green Product |
RoHS, cRoHS, WEEE |
|
|
