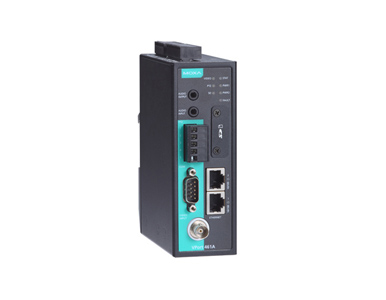

Moxa VPort 461A-T - Full Motion, 1-ch Industrial Video Encoder, 2 10/100BaseT(X) Ethernet port, -40 to 75 Degree C
by MOXA

Supports up to 3 video streams simultaneously for H.264 and MJPEG
Up to Full D1 resolution (720 x 480) @ 90 FPS for 3 video streams with legacy analog video images
Video latency under 200 ms Industrial IP Surveillance for Mission-Critical Applications
2 Ethernet ports for cascade and Ethernet port redundancy
Moxa DynaStream™ function support for network efficiency
ONVIF support for standardization and interoperability
Local storage capability with SD card slot
Industrial design with -40 to 75°C operating temperature

Description
Specification
Datasheet

The VPort 461A 1-channel industrial video encoder with H.264 video compression algorithm provides the best video quality on the market, but with a smaller bandwidth requirement than other video compression standards. In addition, to meet various video stream requirements, the VPort 461A can provide up to 3 video streams simultaneously using H.264 and MJPEG compression formats. Video streams can be used for different purposes, such as viewing,recording, and analyzing. In addition, the industrial rugged design, which includes a -40 to 75°C operating temperature, IP30 protection, and industrial certifications, make the VPort 461A suitable for harsh environments.

The VPort 461A is equipped with Moxa’s innovative DynaStream™ technology to reduce bandwidth consumption of your video transmissions when the network is over-loaded by automatically decreasing the video frame rate. DynaStream™ can also increase video FPS when emergencies occur, offering total control of bandwidthusage to network administrators.

• Video
Video Compression	H.264 (MPEG4 part 10), MJPEG
Video Inputs	1 (BNC connector)
Video Output	via Ethernet
Video Streams	3, H.264 or MJPEG video streams
NTSC/PAL	Auto-sensing or manual
Video Resolution and FPS (frames per second)
Video Viewing	• DynaStream™ support for changing the video frame rate automatically • Adjustable image size and quality • Timestamp and text overlay • Maximum of 10 simultaneous unicast connections, 50 multicast clients • CBR Pro™ support for accurate streaming bit rate control • Image manipulation: 180° rotation • Image tuning: control brightness, contrast, saturation
• Audio
Audio Inputs	1 Line-in or mic-in with 3.5 mm phone jack
Audio Outputs	1 Line-out with 3.5 mm phone jack
Audio Format	Mono, PCM (G.711)
• Network
Protocols	IPv4/v6, UDP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, RTP, RTSP, ICMP, IGMPv3, QoS (ToS), SNMP V3, DDNS, Modbus/TCP, 802.1X, SSH/HTTPS
Ethernet	2 10/100BaseT(X) Ethernet ports, RJ45 connector
• Serial Port
PTZ Ports	1 RS-232 or RS-422/485 port, terminal block connector, 115.2 kbps
COM Ports	1 RS-232 or 485 port, DB9 male connector, 115.2 kbps
Console Port	1 RS-232 port, RJ45 connector
• Local Storage
SD Socket	Standard SD socket, V2.0 (SDHC)
• GPIO
Digital Inputs	2, max. 8 mAHigh: +13 to +30 V; Low: -30 to +3 V
Relay Outputs	2, max. 24 VDC @ 1 A
• LED Indicators
STAT	Indicates if system is booted up properly or not
PWR1	Power 1
PWR2	Power 2
FAULT	Can be configured to correspond to system alarm, power failure, or disconnected network
VIDEO	Video input signal
PTZ	Indicates if PTZ or COM port data has been transmitted
SD	Indicates if SD card was mounted successfully
• Power Requirements
Input Voltage	12 to 32 VDC, or 18 to 30 VAC
Input Current	0.85 A @ 12 VDC; 0.3 A @ 32 VDC; 0.85 A @ 18 VAC; 0.56 A @ 30 VAC
• Physical Characteristics
Housing	Metal, IP30 protection
Dimensions	46 x 134 x 105 mm (1.81 x 5.31 x 4.13 in)
Weight	710 g (1.57 lb), including DIN-rail mounting kit
Installation	DIN-rail mounting (standard), wall mounting (optional)
• Alarms
Intelligent Video	Camera tampering
Video Motion Detection	Includes sensitivity tuning
Scheduling	Daily repeat timing schedule
Imaging	JPEG snapshots for pre/trigger/post alarm images
Custom Alarms	HTTP event servers and CGI events for setting customized alarm actions
Email/FTP Messaging	Automatic transfer of stored images via email or FTP with event-triggered actions
Pre-alarm Buffer	50 MB for JPEG snapshot images
• PTZ (Pan/Tilt/Zoom)
PTZ Camera Control	Via PTZ port or COM port
PTZ Control Functions	Pan, tilt, zoom, focus, moving speed, preset position (max. 128 positions)
PTZ Function Updates	Driver upload supported
Supported Device Protocols	Pelco D, Pelco P, Custom Camera
• Security
Password	User level password protection
Filtering	By IP address
Authentication	802.1X
Encryption	HTTPS, SSH
• Environmental Limits
Operating Temperature	Standard Models: -25 to 60°C (-13 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Vibration	IEC 60068-2-6, 2 to 13.2 Hz: 2 mm (peak-peak); 13.2 to 100 Hz: 0.7g; 1.50 hrs/axis IEC 60068-2-6, 3 to 9 Hz: 7 mm (peak-peak); 9 to 150 Hz: 1.0g; 1.86 hrs/axis
Shock	IEC 60068-2-27, 20g/11ms
Altitude	2000 m
Ingress Protection	IEC 60529, IP30
• Standards and Certifications
Safety	UL 60950-1
EMC	EN 55022/24
EMI	CISPR 22, FCC Part 15B Class A
EMS	IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 IEC 61000-4-11
Transportation	NEMA TS2
• MTBF (mean time between failures)
Time	647,088 hrs
Standard	Telcordia SR332
• Warranty
Warranty Period	5 years
Details	See www.moxa.com/warranty
• Minimum Viewing System Requirements
CPU	Pentium 4, 2.4 GHz or above
Memory	512 MB memory or above
OS	Windows XP/2000 with SP4 or above, Windows Vista, Windows 7
Browser	Internet Explorer 9.x or above
Multimedia	DirectX 9.0c or above
• Software Development
VPort SDK PLUS	Includes CGI commands, ActiveX Control, and API library for customized applications or system integration for third-party developers (the latest version of SDK is available for download from Moxa’s website).
Standard	ONVIF, Profile S
