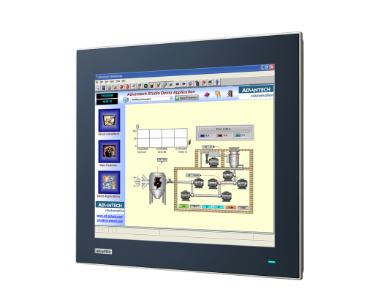

Advantech TPC-315-R853B - 15" XGA TFT LED LCD Touch Panel Computer with 8th Gen. Intel® Core™ i3/ i5/ i7 Processo
by Advantech
|
|
|
|
TPC-315-R853B_SUMMARY.html
- Industrial-grade 15" XGA TFT LCD with 70K lifetime and LED backlight
- 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM
- Compact
- fanless embedded system with aluminum alloy front bezel and chassis grounding protection
- True-flat touchscreen with 5-wire resistive touch control and IP66-rated front panel
- Supports expansion via Full-size Mini PCIe and NVMe
- Diverse system I/O and isolated digital I/O via iDoor technology
- Supports fieldbus protocols via iDoor technology
|
|
|
TPC-315-R853B_DESCRIPTION.html
The TPC-315-R853B touch panel computer is equipped with 15" XGA TFT LED LCD, low-power 8th Gen. Intel® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor, and built-in 8 GB DDR4 SO-DIMM delivering high performance yet compact and fanless computing system.
TPC-315-R853B.html
| Environment |
| Ingress Protection |
Front Panel IP66 |
| Operating Temperature |
-10~55 °C (14~131 °F) |
| Storage Temperature |
-20~70 °C (-4~158 °F) |
| Vibration Protection |
1 Grms, random |
| General |
| Humidity (Operating) |
10~95% RH (non-condensing) |
| Hardware |
| BIOS |
AMI UEFI |
| Certification |
CB, UL, CE, FCC Class A, CCC, BSMI |
| CPU |
8th Gen. Intel® Core™ i5-8365UE 1.60GHz Quad-Core |
| I/O |
1 x USB 2.0, 4 x USB 3.2, 1 x iDoor slot |
| LAN |
1 x 10/100/1000 Mbps, 1 x 10/100/1000/2500 Mbps |
| Memory |
1 x SO-DIMM with 8 GB DDR4 2400 MHz, 2 x DDR4 SO-DIMM Slot |
| OS Support |
Microsoft® Windows 10 LTSC, Linux, Android |
| Power Consumption |
36.79 W @ 24 VDC |
| Storage |
1 x SATA M.2 SSD slot (2280 M-Key)<br>;<br>1 x 2.5" SSD/HDD Bay, 1 x mSATA, 1 x M.2 B key
|
| Watchdog Timer |
15~255 s |
| I/O Interface |
| Audio |
Line-Out, Microphone |
| Displays |
1 x DP |
| Expansion |
1 x Full-size mPCIe Slot, 1 x SIM card Slot |
| Serial Ports |
2 x RS-232/422/485 |
| LCD Display |
| Backlight Life (hrs) |
70,000 |
| Display Size |
15" |
| Luminance (cd/m2) |
300 |
| Max. Resolution |
1024 x 768 |
| Viewing Angle (H/V°) |
176/176 |
| Mechanical |
| Dimension (W x H x D) |
383.2 x 307.3 x 66.5 mm |
| Enclosure |
Die-cast aluminum alloy |
| Mounting |
Stand, Wall, VESA, Panel |
| Weight (Net) |
5.8 kg (12.79 lb) |
| Touchscreen |
| Touch Type |
5-wire resistive |
|
|
|
|
