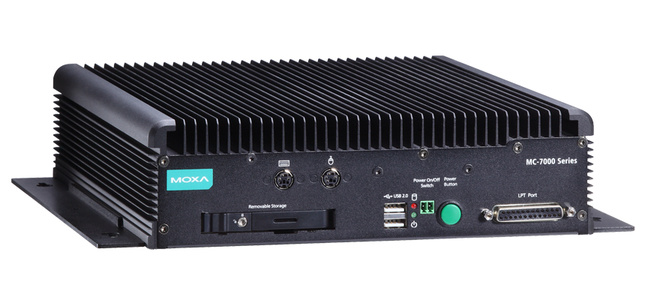

Moxa MC-7270-DC-CP-T - x86 Marine computer with Intel IVB i7-3555LE CPU, fanlaess, compact size, 6 USB 2.0, 4 LAN, 2 DVI-D, 1 V
by MOXA

High performance Intel® Core™ i7 3555LE processor
Compact size and fanless design
Three independent displays (DVI-D x 2 + VGA x1 )
4 Gigabit Ethernet ports for network redundancy
2 SATA drive storage capability
-40 to 70°C operating temperature range

Description
Specification
Datasheet

The MC-7270-DC-CP-T computer features the Intel® Core™ i7 3555LE processor and come with 4 serial ports, 4 Gigabit Ethernet ports, and 6 USB hosts. The computer offers high performance and versatile peripherals for marine applications.

Designed with highest quality and durability in mind, the marine-grade MC-7270-DC-CP-T computer features a rugged chassis proven against 1G anti-vibration, providing a most reliable platform even in harsh environments. In addition, the compact size, fanless design, and low power consumption deliver an optimal thermal solution and make installation easy for bridge systems in marine applications.

Users can easily install Windows XP Embedded, XP Professional, or Windows 7, to provide a flexible and friendly environment for system development and application implementation.

Computer
CPU	Intel® Core™ i7-3555LE, dual core 64-bit 2.5 GHz processor
OS	Windows 7, Windows XP SP3, Windows XP Embedded (must be installed by the user)
System Chipset	Intel® QM77 Express Chipset
System Memory	16 GB capacity, with 4 GB pre-installed (2 slots total, with a 4 GB DDR3/DDR3L-1600 204 pin SO-DIMM SDRAM pre-installed in 1 slot)
USB	USB 2.0 hosts x 6, Type A connectors
Storage	• 2 SATA III 6 Gbps ports for removeable storage tray • 2 SATA II 3 Gbps ports (internal, for installing optional hard disks)
• Other Peripherals
Audio	Line in x 1, Line out x 1
KB/MS	2 PS/2 interfaces supporting standard PS/2 keyboard and mouse
LPT Ports	1
• Display
Display Interface	• VGA Interface x 1: 15-pin D-Sub connector (female), with resolution up to 2048x1536 pixels with 32-bit color at 75 Hz • DVI-D Interface x 2: 29-pin DVI-D connectors (female), with resolution up to 1920 x1200 pixels with 32-bit color at
Graphics Controller	Onboard Intel® HD 4000 graphics
• Ethernet Interface
LAN	4 auto-sensing 10/100/1000 Mbps ports (RJ45)
Magnetic Isolation Protection	1.5 kV built in
• Serial Interface
Serial Standards	• 2 RS-232/422/485 ports, software-selectable (DB9 male) • 2 RS-232 ports (DB9 male)
• Serial Communication Parameters
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485
Baudrate	50 bps to 115.2 kbps
• Serial Signals
RS-232	TxD, RxD, DTR, DSR, RTS, CTS, DCD, GND
RS-422	TxD+, TxD-, RxD+, RxD-, GND
RS-485-4w	TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w	Data+, Data-, GND
• LEDs
System	Storage, Power
LAN	100M/Link x 4, 1000M/Link x 4 (on connector)
• Physical Characteristics
Housing	Aluminum, sheet metal
Weight	3.85 kg
Dimensions	287 x 250 x 70 mm (11.30 x 9.84 x 2.76 in)
Mounting	Wall
• Environmental Limits
Operating Temperature	-40 to 70°C (-40 to 158°F)
Storage Temperature	-50 to 80°C (-58 to 176°F)
Ambient Relative Humidity	5 to 95% (non-condensing)
Anti-Vibration	• 0.7 g @ DNV 2.4 (Class A), sine wave, 2-100 Hz, 1 Oct./min., 1.5 hr per axis • 1 g @ DNV 2.4, random wave, 3-100 Hz, 2.5 hr per axis • 2.1 g @ DNV 2.4 (Class C), sine wave, 2-50 Hz, 1 Oct./min., 1.5 hr per axis
• Power Requirements
Input Voltage	24 VDC (with tolerance from 18 to 30 VDC, 2-pin terminal block)
Power Consumption	Less than 100 W, 2.5 A @ 24 VDC
• Standards and Certifications
Safety	UL 60950-1, CCC
EMC	EN 55022 Class B, EN 55024-4-2, EN 55024-4-3, EN 55024-4-4, FCC Part 15 Subpart B Class A
Marine Standards	IEC-60945 4th, IEC-61162, IEC-61174 (Pending)
Marine Type Approval	DNV 2.4 and ABS (Pending)
Green Product	RoHS, cRoHS, WEEE
• Reliability
MTBF (mean time between failures)	220,490 hrs
