Moxa’s UC-8540-T-LX is an innovative computing platform designed specifically for transportation applications. Its single-sided I/O design is ideal for vehicle applications, which typically do not have enough room for installing communication devices. Front-side access makes it easy to install or change SIM cards and wiring cables. Users can install or change wireless modules, mSATA cards, and the RTC battery from the top or the bottom for easy maintenance.
The UC-8540 has 1 miniPCIe slot with USB signal to support a 4G/LTE module, and 1 slot with PCIe/USB signal to support a Wi-Fi module. The 4G/LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in MIRF 2.0, a Moxa device remote-management platform with wireless management.
The UC-8540 can be used as a communication-centric computing platform in applications such as vehicle-to-ground communication gateway, TCMS T2G (train-to-ground) gateway, mobile condition monitoring unit, Ethernet Consist Network T2G gateway, and onboard wireless automated fare collection unit. Wireless modules are sold separately. Please contact a Moxa sales representative for details.
The UC-8540 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (advanced packaging tools), or develop software applications with Moxa’s API Library and GNU C Library.

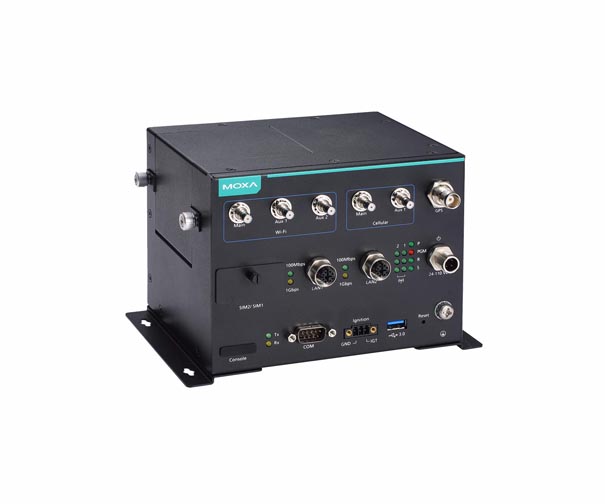

Appearance
Computer
CPU
Armv7 Cortex-A7 dual-core 1 GHz
Storage Pre-installed
8 GB eMMC
Supported OS
Linux Debian 8 (Linux kernel v4.1)
System Memory Pre-installed
1 GB DDR3L
Storage Slot
mSATA slots x 1, internal mini-PCIe socket
Computer Interface
Expansion Slots
mPCIe slot x 2
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (M12 X-coded) x 2
Cellular Antenna Connector
QMA x 2
USB 3.0
USB 3.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector
QMA x 3
Serial Ports
RS-232/422/485 ports x 1, software selectable (DB9 male)
